AVMatrix PKC4000 Touch Screen PTZ Camera Controller

Streamline your multi-camera setup with the AVMatrix PKC4000. Featuring a 5" touchscreen, 4D joystick, and support for Visca, Pelco P&D, Onvif, and IP protocols, this controller manages up to 100 PTZ cameras with real-time video decoding. Control exposure, iris, focus, and movement with ease. Powered via PoE or 12V DC, it’s ideal for studios, live events, and broadcast environments.

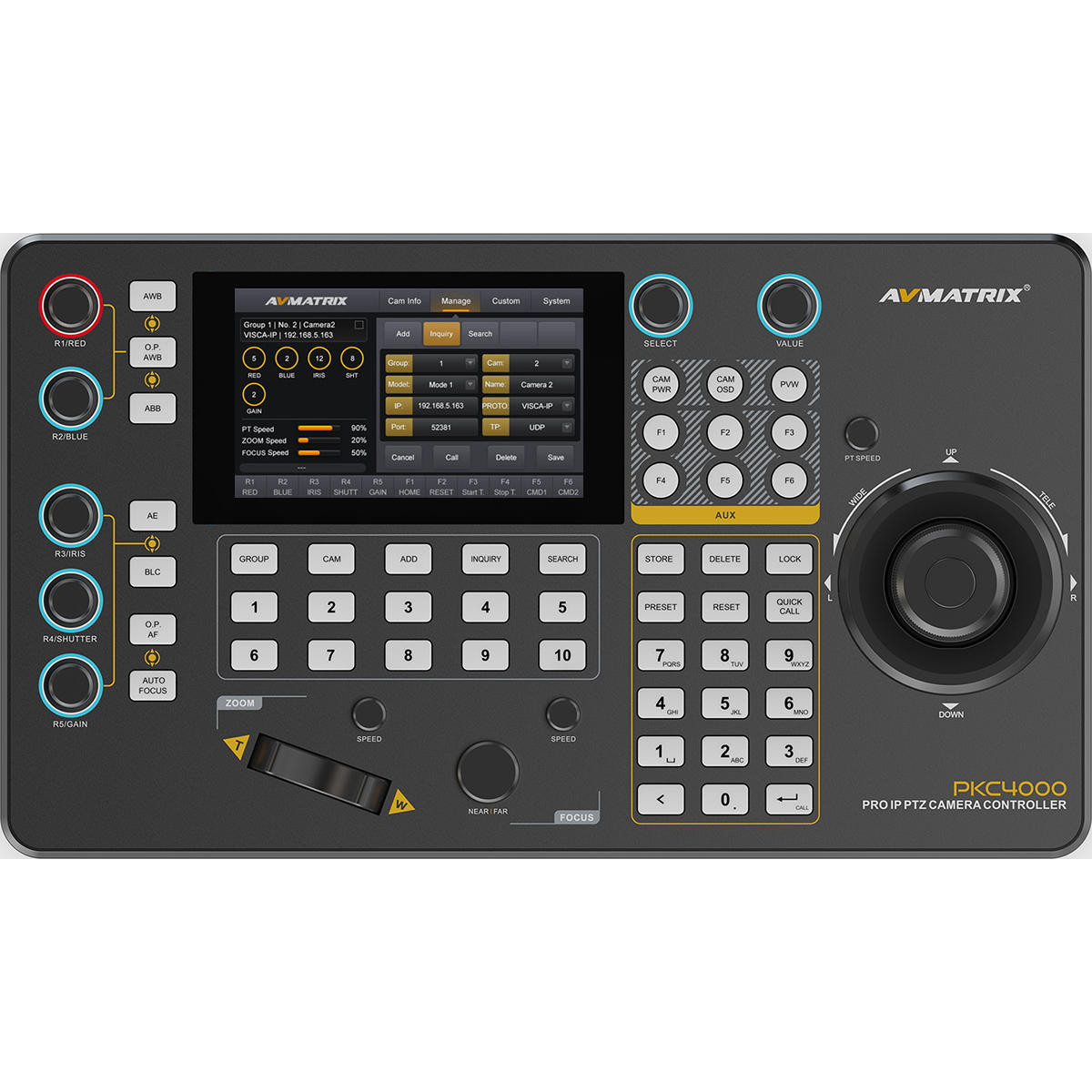

• Easy operation with 5" touch screen and 4D joystick
• Supports video decoding for real-time signal monitoring
• Supports Visca, Visca Over IP, Pelco P&D and Onvif protocols, NDI version also supports NDI|HX
• Control over IP, RS-422, RS-485 and RS-232
• Automatic IP address assignment for quick setup
• Manage up to 100 IP cameras on a single network
• Six user-assignable buttons for quick access to functions
• Quickly control exposure, aperture, focus, pan, tilt, etc.
• Supports PoE and external 12 V= power supply
• Optional version with NDI|HX support

The touchscreen installation camera controller offers easy and intuitive operation with a 5" touchscreen and 4D joystick. It supports Visca, Visca Over IP, Pelco P&D and Onvif protocols and allows control via IP, RS-422, RS-485 and RS-232 interfaces. With real-time video monitoring, automatic IP address assignment and management of up to 100 IP cameras, it ensures efficient PTZ camera operation. Support for video decoding enables real-time signal monitoring and provides users with live feedback for accurate setup. Automatic IP address assignment simplifies the setup process, while the controller's ability to manage up to 100 IP cameras on a single network makes it suitable for large-scale productions. In addition, the panel features six user-assignable buttons for quick access to basic functions and offers dedicated controls for adjusting exposure, aperture, focus, pan, tilt and more. The device can be powered via PoE or a 12V DC power supply, and an NDI version is available for those requiring advanced IP video workflows.
