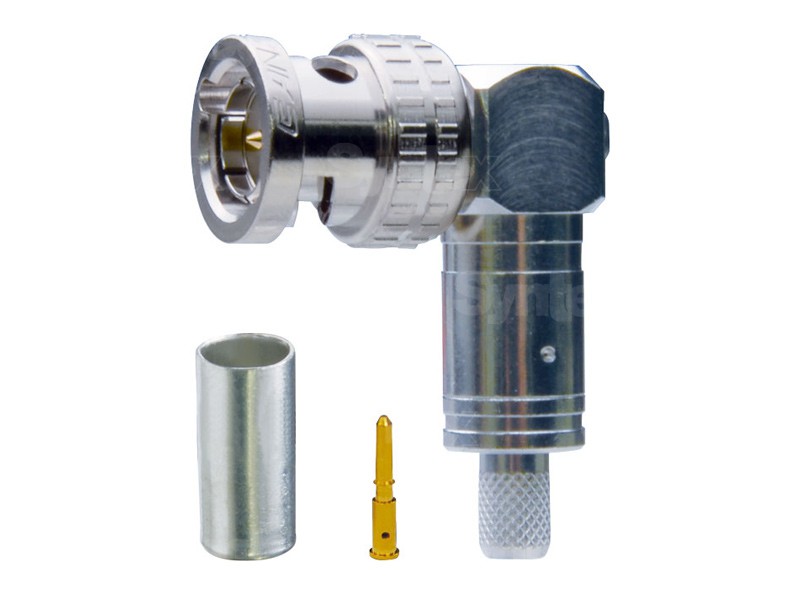

Canare BCP-LC3
SKU: BCP-LC3
Canare BCP-LC3 is a 75 ohm BNC Crimp Plugs BCP-LC Series (Right Type)
17 € with VAT
14.05 € without VAT
Availability
Shipment day: 19. 10.
Shipment day: 19. 10.
To be sent > 5 pcs
Bratislava > 5 pcs
Bratislava > 5 pcs
Top accessories for Canare BCP-LC3
Canare TCD-35CA crimp die
Canare TCD-35CA Die Set for the Canare L-2.5CHWS, L-2.5CFB, L-3C2VS, L-3CFB, V-3C,
130 €
In stock 2 pcs
Product description
Product description
Canare BCP-LC3 is a 75 ohm BNC Crimp Plugs BCP-LC Series (Right Type)
Canare BCP-LC3 is a 75 ohm BNC Crimp Plugs BCP-LC Series (Right Type)
Applications:
- SMPTE 259M & 292M Compliant
- Serial Digital Video
- HDTV Upgrades
- NTSC Analog
- Test Equipment
- Satellite Headends
- TELCOM
- True 75 ohm construction Crimp Pin & Sleeve
- DC to 2 GHz >26dB Return Loss (<1.1 VSWR)
- Mechanically mates with common 50 ohm BNC
- Elongated Body for better finger grip
- Superior cable pull strength
- Gold plated center pins 'snap lock' in place
- Beryllium copper outer contact
- Easy Assembly using Canare Strip & Crimp Tools
- Operating temperature -20 to +60 degrees Celsius
Parameters
Parameters
| Manufacturer: | Canare |
| Category: | Video connectors |
Main parameters
| Type | BNC |
| Suitable cable | L-3C2VS |
Other parameters
| Version | On the cable · Crimp · Male · Hooked |
