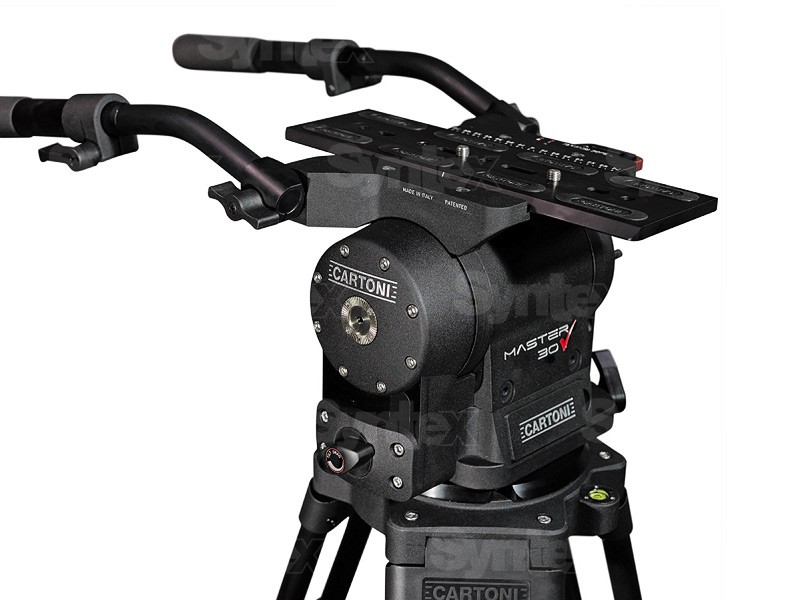

Cartoni Master 30

Cartoni Master 30 is a completely new and redesigned video head designed for camera rigs weighing from 3kg to 40kg. It covers most needs, is lightweight, perfectly controllable, and available in two versions - Master 30 and Master 30 Cine.

The Master Cine 30 Head includes all the advantages of the famous Cartoni Maxima Fluid Head -- but in a more compact size and at a reduced weight of 10.5 kg. A digital read-out indicates counterbalance, pan and tilt fluid settings. The bubble level is illuminated. To make the Master Cine 30 more user friendly, the pan and tilt brakes are conveniently placed on the left side (operator side) of the head. The camera baseplate latch can be activated with one hand both to disengage the new safety lock and to free the camera plate completely.



The camera plate stage accepts all industry-standard camera baseplates, slides 140 mm back and forth, and is clearly marked by a scale. There are 4 rosettes for pan handles. Standard configuration comes with a right telescopic pan bar and a left front pan handle. Front box attachments and eyepiece extension holders are optional.

Specifications

• Payload capacity at 200mm: 23 kg
• Payload capacity at 150mm: 30 kg
• Payload capacity at 100mm: 40 kg
• Weight: 10.5 kg
• Pan range: 360°
• Tilt range: 180°
• Counterbalance: Continuous (Wing patented system)
• Fluid drag: Continuous (Planetary patented system)
• Base: Flat Mitchell or 150mm Bowl
