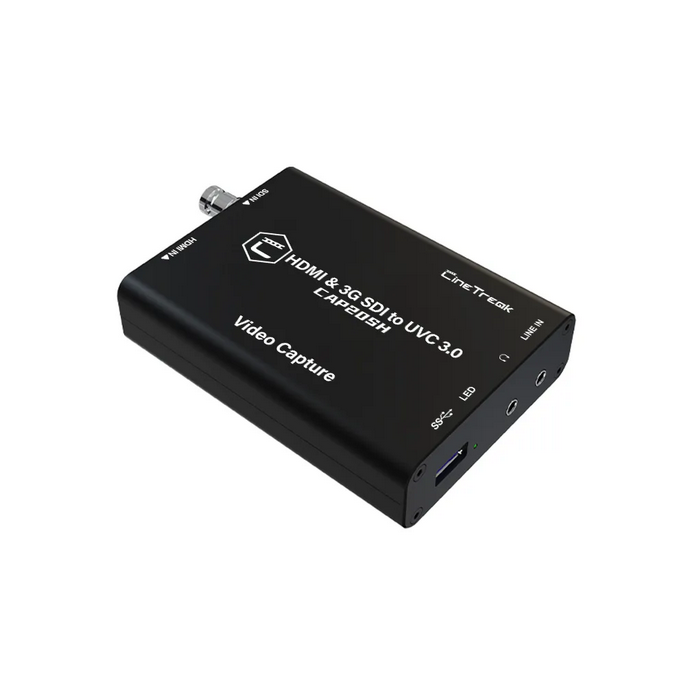

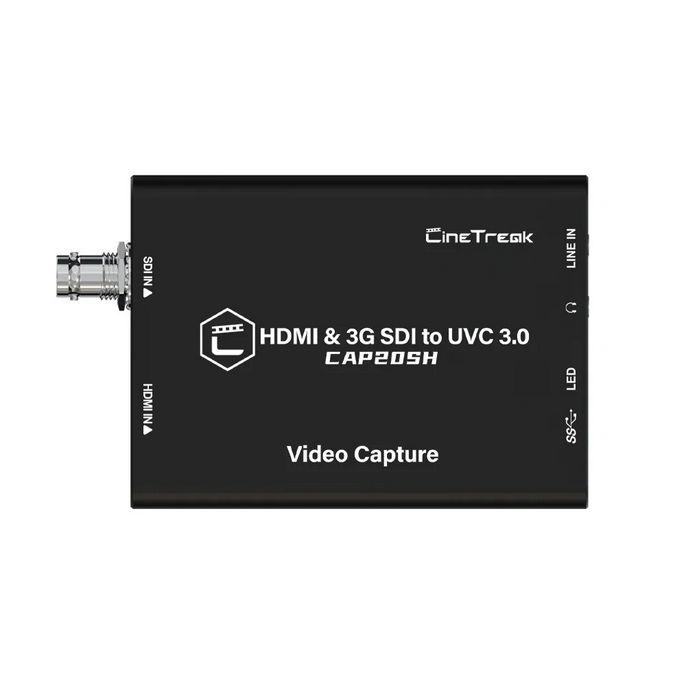

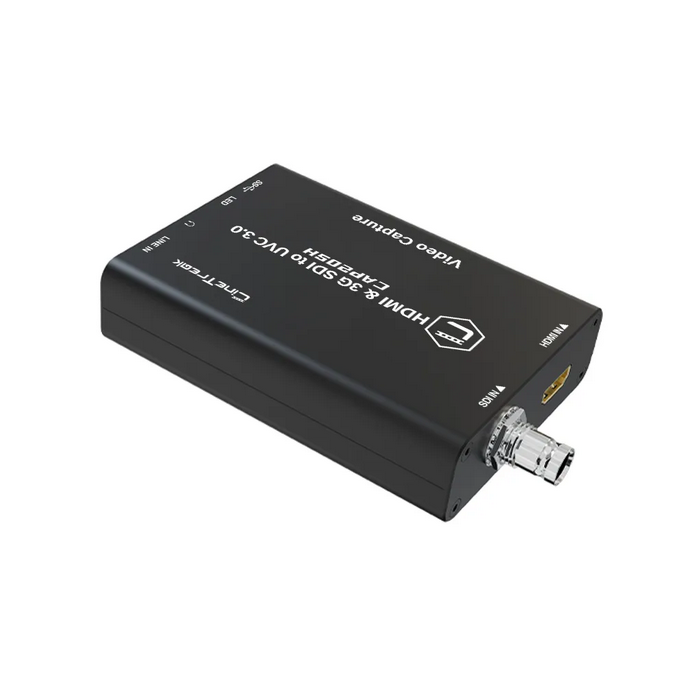

CineTreak CAP20SH

The CineTreak CAP20SH is a versatile SDI/HDMI to USB 3.1 video capture device that delivers uncompressed Full HD capture with multi-source support, advanced transition effects, chroma keying, and 3D LUT output for professional streaming and content creation.

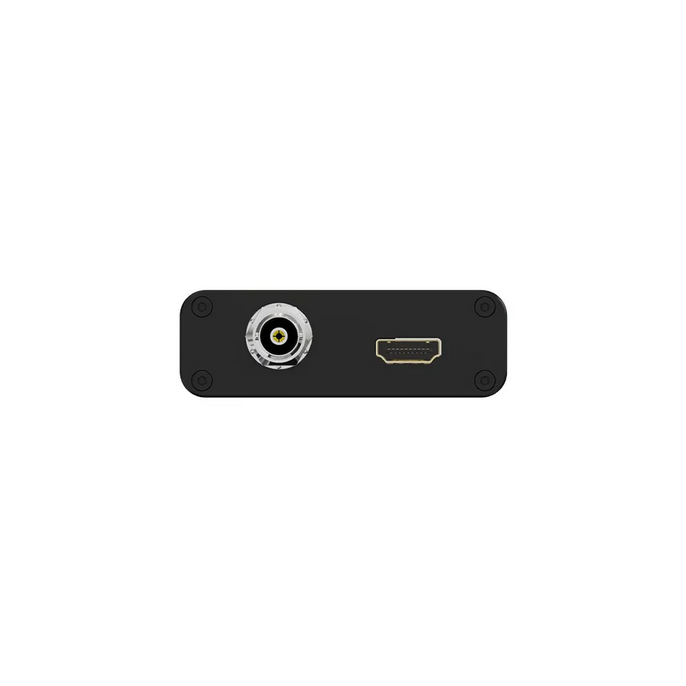

The CineTreak CAP20SH combines professional-level performance with plug-and-play simplicity, offering seamless SDI and HDMI to USB 3.1 video capture for live streaming, video conferencing, and production environments. It supports both 3G-SDI (including ST2048 formats) and HDMI inputs up to 2048×1080@60fps, outputting crisp, uncompressed 1080p@60fps over USB 3.1 or MJPEG 1080p@50fps over USB 2.0.

Designed for flexibility, the CAP20SH supports PIP (Picture-in-Picture) and PBP (Picture-by-Picture) layouts, along with MIX, CUT, and FTB transitions for a broadcast-like production experience. The integrated chroma key feature allows for green-screen and background replacement effects, while 3D LUT support ensures professional-grade color accuracy and real-time color grading.

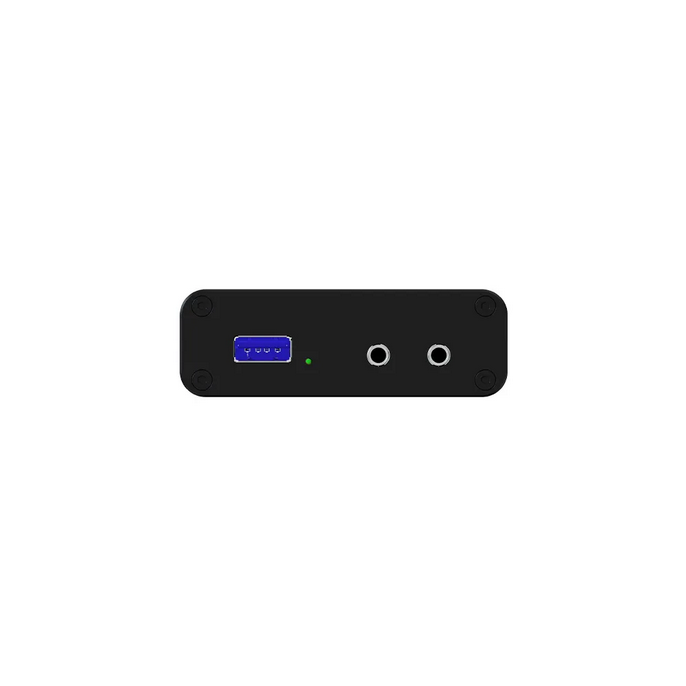

Audio input and monitoring are handled via a 3.5mm mic input and headphone output, and UVC/UAC protocol compatibility ensures it works seamlessly across major operating systems without additional drivers. The Ultra Control Utility enables deep customization, while image flip, USB Type-A power, and LED indicators make this an easy, portable solution for studio or field use.

Key Features:

• SDI and HDMI input support, including cinematic ST2048 formats
• USB 3.1 output with uncompressed 1080p@60fps video
• MJPEG 1080p@50fps via USB 2.0
• PIP/PBP layout options with transition effects (MIX, CUT, FTB)
• Chroma keying and 3D LUT output for professional effects
• 3.5mm microphone input and headphone output
• UVC/UAC plug-and-play compatibility
• Ultra Control Utility for advanced video customization
• Image flip feature for flexible camera setups
• USB Type-A powered with status LEDs
