CONST LB-190A (GOLD-MOUNT)

CONST LB-190A (12.8Ah, 190Wh, 14.8V) s Gold-Mount

Professional Li-ion camera batteries CONST LB-XXXA series with Anton Bauer / Gold-Mount. Available in different capacities.

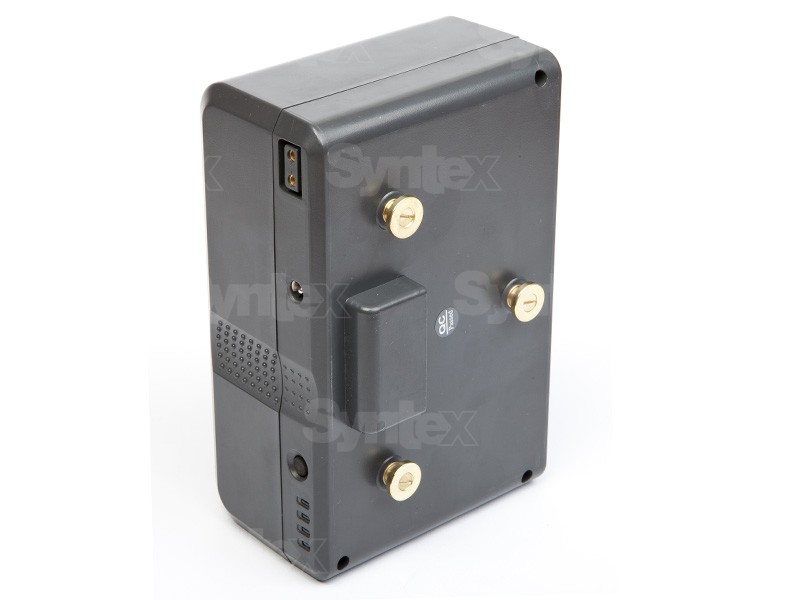

CONST Li-ion camera batteries in Gold-Mount version are compatible with all professional cameras powered by Anton Bauer batteries (e.g. Panasonic, JVC Digital-S Series, DVCPRO, Ikegami) with 14.8 V. In addition to the corresponding terminals (D-Tap, circular contact), the batteries are equipped with a four-segment LED indicator that shows the state of charge. Of course, there are circuits for protection against abnormal current or voltage loads and against unacceptable battery temperature

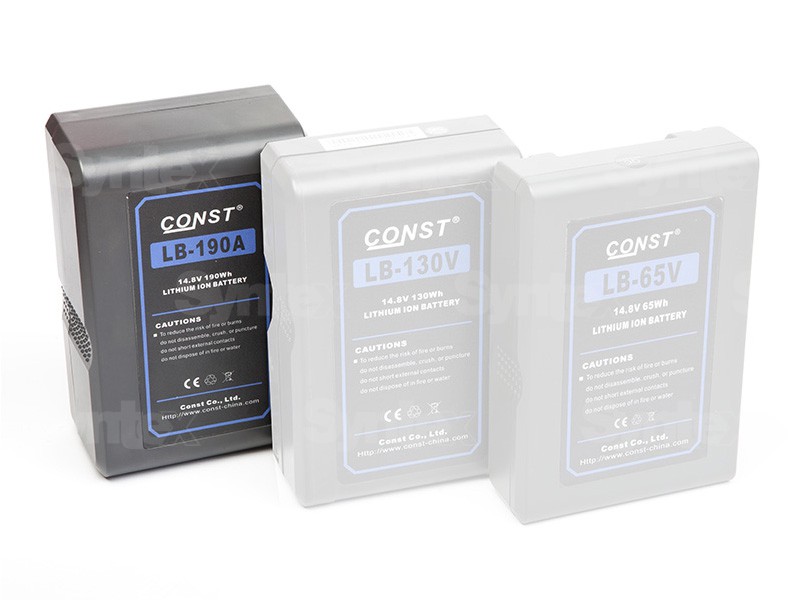

The batteries come in several capacities: the LB-65A model is a 65Wh battery measuring 152 x 101 x 40 mm and weighing 525 g. The 130Wh LB-130A model weighs 860 g at 152 x 101 x 58 mm. Finally, the LB-190A model provides up to 190Wh, which is redeemed by a weight of 1,145g and a size of 152 x 101 x 68mm.
