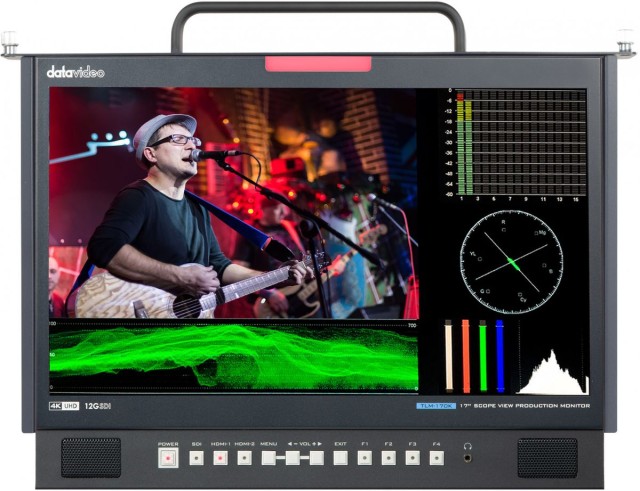

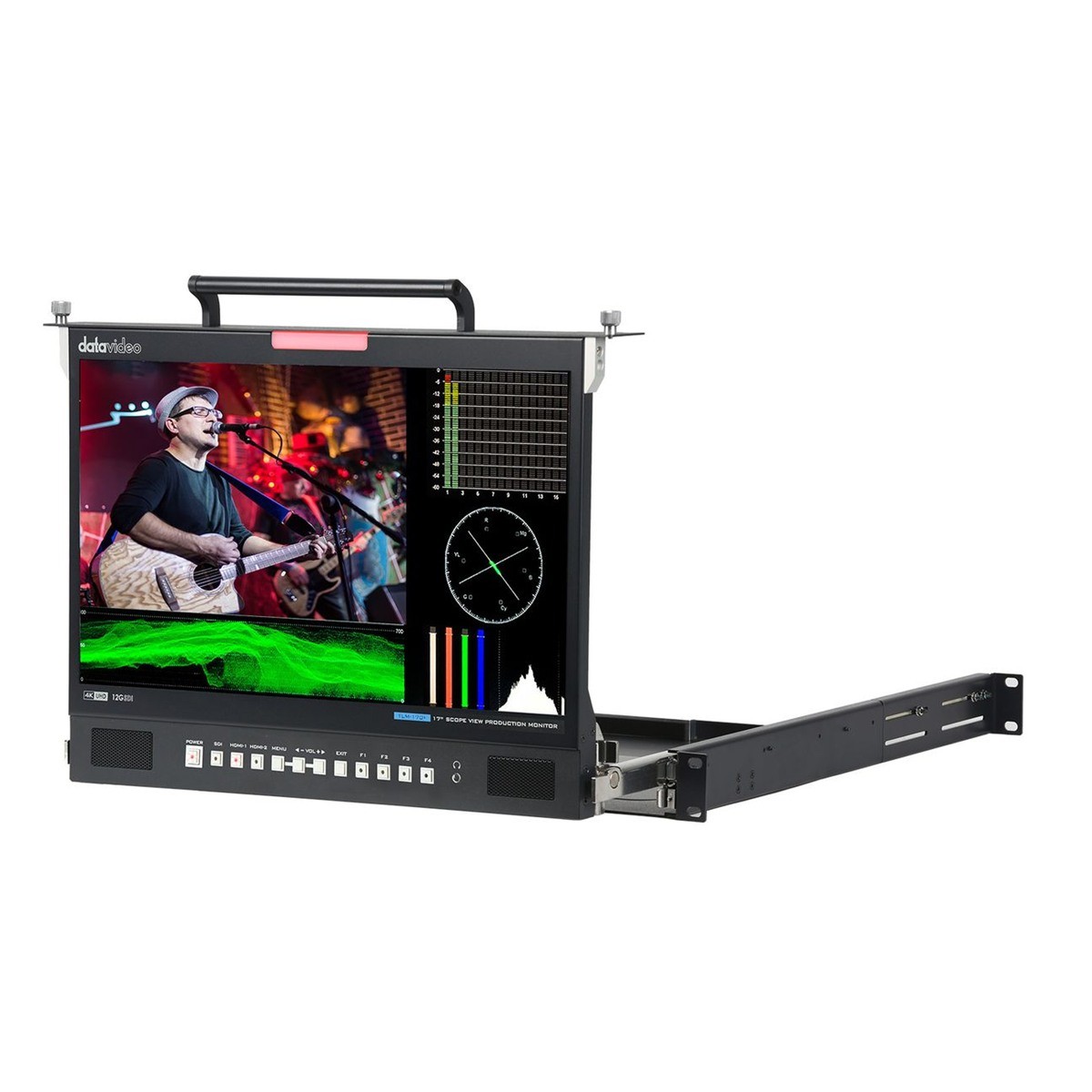

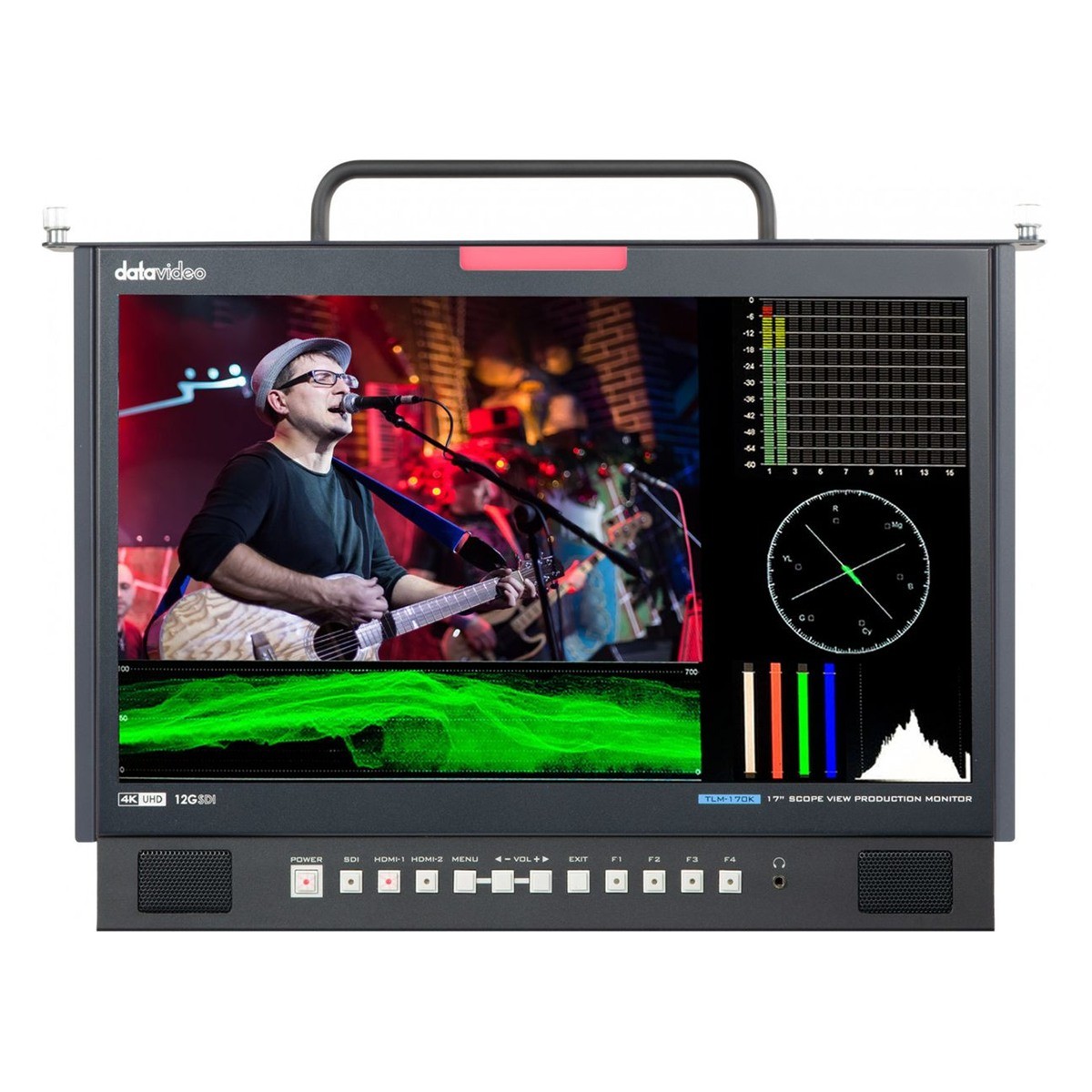

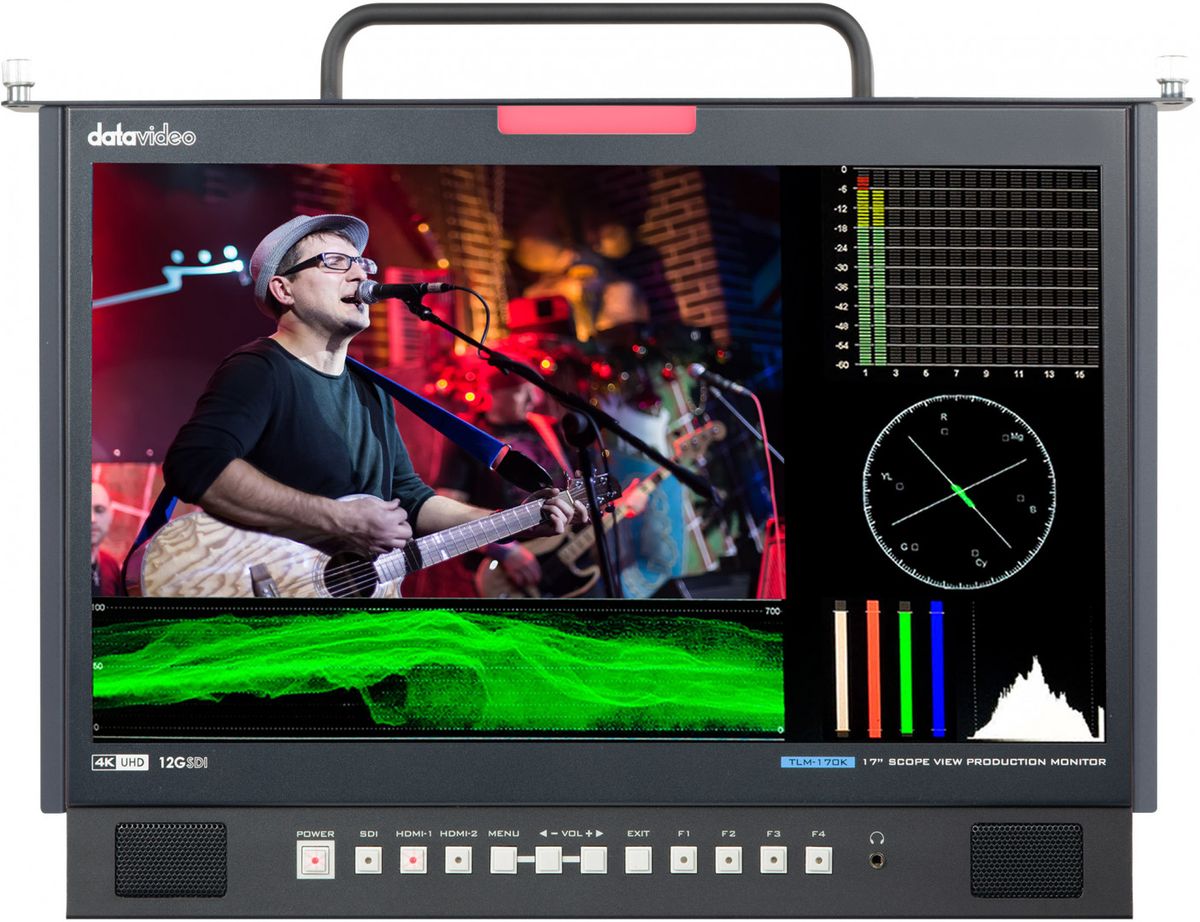

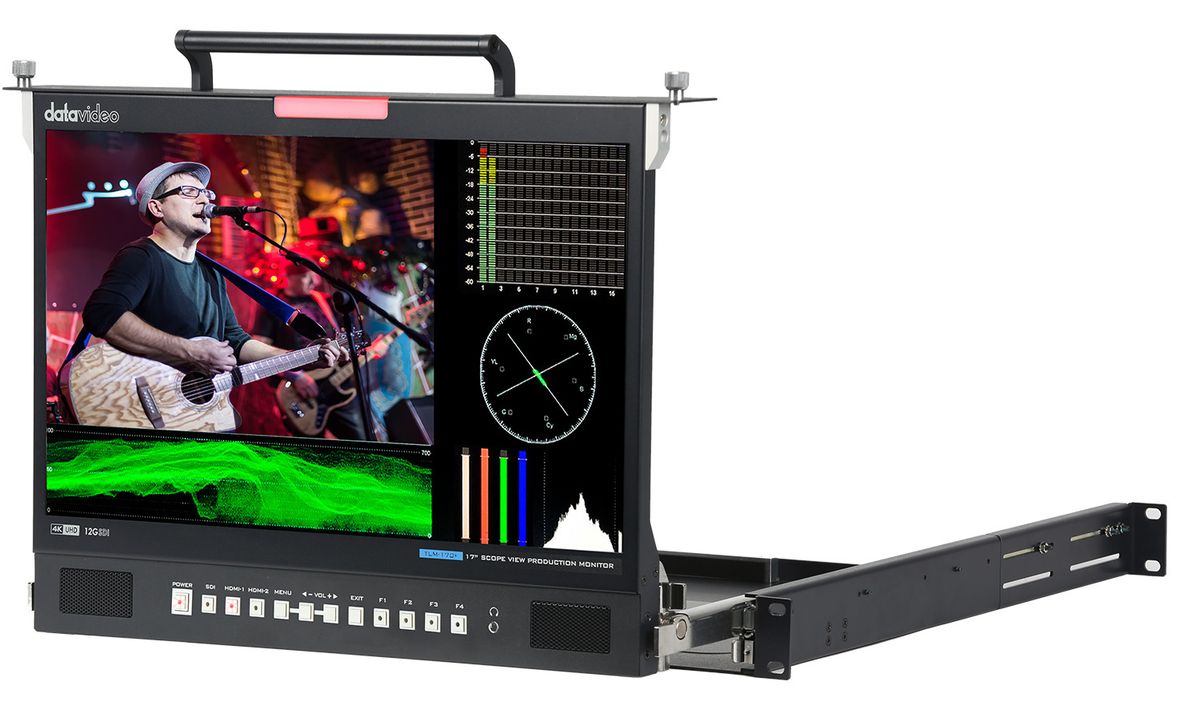

Datavideo TLM-170KM

The TLM-170K is a desktop 17-inch 4K UHD LCD monitor which comes with an UHD 3840 x 2160px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 1000:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output. The TLM-170K series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false colour, histogram, peaking, zoom, screen markers, image flip, and more. It also supports HDR for HLG and SMPTE 2084, and the presets of colour space include Rec 709 and DCI P3. The TLM-170K series are ideal for broadcast and live production applications.

• 17-inch ScopeView Production Monitor
• Supports DCI P3 colour space 4K/60p and UHD 4K/60p video input and output
• Supports Multiple Input and Output Configurations - 1x 12G-SDI, 2x HDMI (HDMI 2.0) inputs, 1x 12G-SDI loop-through, 1x HDMI (HDMI 2.0) loop-through
• Supports column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more
• Tally light included. Best use for live production
• The TLM-170K series apply superior Ultra HD 3840 x 2160px IPS panel
