Grass Valley STORM 3G

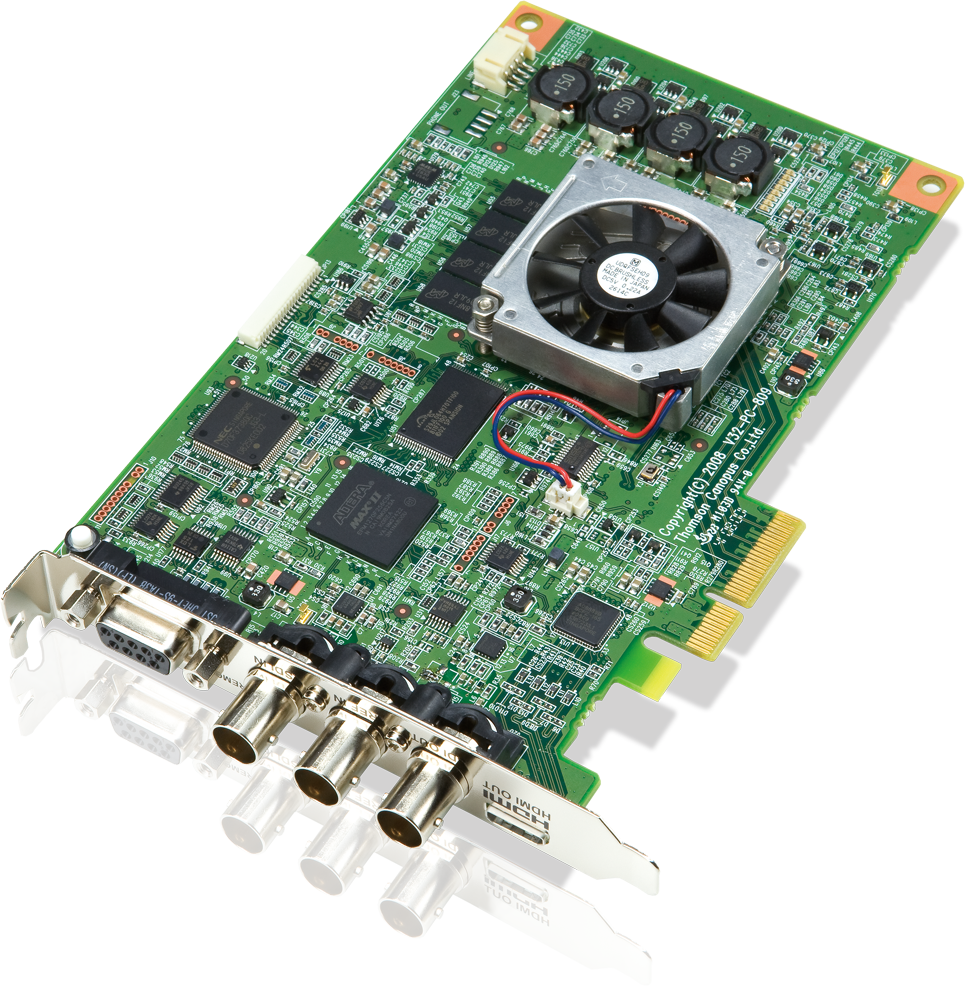

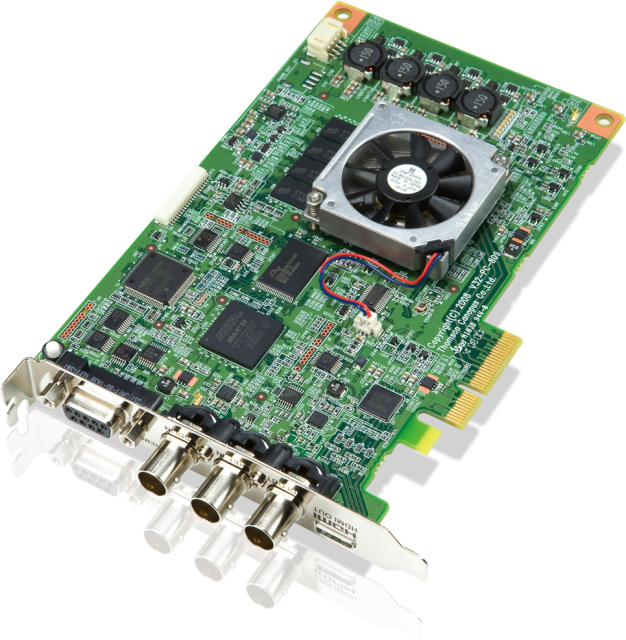

STORM 3G hardware is a premium, high-quality solution for multi-format editing—one that supports 3G-SDI-based editing and tapeless workflows and the ability to preview projects in real time, using affordable HDMI monitors. Based on the PCI Express form factor, it includes EDIUS nonlinear editing software, 3G-SDI inputs and outputs, an HDMI video output for full-resolution, real-time preview monitoring, and embedded HDMI audio for high-quality audio monitoring.

STORM 3G hardware is a premium, high-quality solution for multi-format editing—one that supports 3G-SDI-based editing and tapeless workflows and the ability to preview projects in real time, using affordable HDMI monitors. Based on the PCI Express form factor, it includes EDIUS nonlinear editing software, 3G-SDI inputs and outputs, an HDMI video output for full-resolution, real-time preview monitoring, and embedded HDMI audio for high-quality audio monitoring.

Video Formats (Input/Output) (3G-SDI)

• 1920x1080p50/59.94
• 1920x1080i50/59.94
• 1920x1080psF23.98/24/25/29.97
• 1280x720p50/59.94
• 720x486i59.94
• 720x576i50

Video Formats (Output) (mini HDMI)

• 1920x1080p50/59.94
• 1920x1080i50/59.94
• 1280x720p50/59.94
• 720x480i59.94
• 720x576i50
• 720x480p59.94
• 720x576p50

Video Output Connector 3G-SDI

• Video: SMPTE-292M, SMPTE-259M-C
• Audio: SMPTE-299M, SMPTE-272M-A
• Timecode : LTC/VITC Packet (HD), D-VITC (SD)

Video Output Connector Mini HDMI

• Video: YCbCr 4:2:2 (8-bit and 10-bit)
• Audio: LPCM 8-channel (24-bit/48 kHz)

Video Input Connector 3G-SDI

• Video: SMPTE-292M, SMPTE-259M-C
• Audio: SMPTE-299M, SMPTE-272M-A
• Timecode: VITC Packet (HD), D-VITC (SD)

Audio Formats

• LPCM 48 kHz/24-bit

Audio Output Connectors

• Mini HDMI LPCM 8-channel
• 3G-SDI embedded audio

Reference Input

• BNC: Black Burst or Tri-Level Sync
