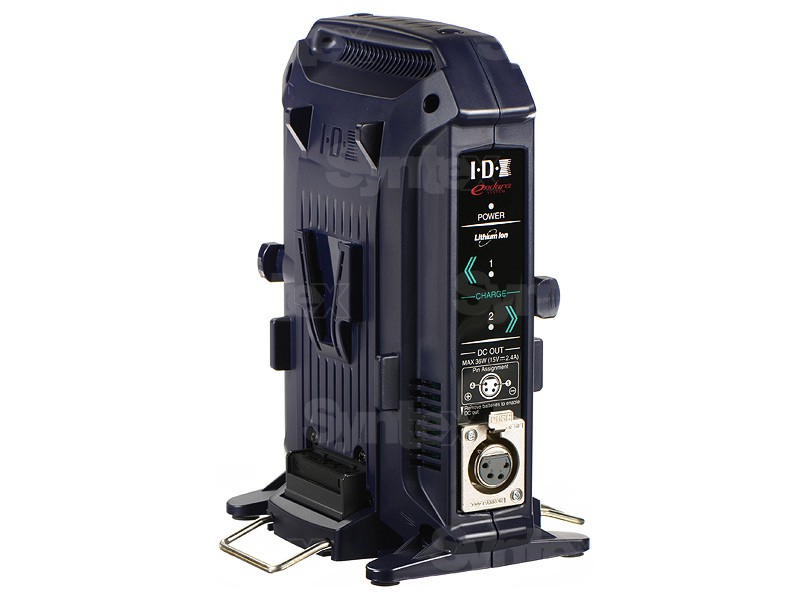

IDX VL-2X

IDX VL-2X is a 2-channel Fully Sequential Quick Charger with AC Power Supply Adaptor (36W DC @ 13.8V)

Basic features of the IDX VL-2X charger:

• Sequential 2-channel charging. The VL-2X will charge the first battery connected to one of the V-Mount channels, automatically switching to charge the second battery when the first is charged.
• Using a 36W DC to DC voltage converter, a 36W XLR output is available for camera, light, or accessory use.
• Compact and lightweight charger body (width - 87.4mm / weight - 430g)
• Integrated tilting stand
• Internal safety features protect both the battery and charger from serious damage in the event of using a defective or incorrect battery inserted into the charger.
• Power supply using an additional 60W AC power supply..

Charging time of several batteries with the IDX VL-2X charger:

Technical specifications of IDX VL-2X Sequential Charger:

• Input voltage: AC 100~240V 50/60Hz
• Power: MAX 140VA
• Fast charging mode current: 1.9A
• DC Output :

• Maximum DC output power: DC 15V/2.4A (Max 36W)
• Battery Output : Battery Voltage via charger output/Maximum battery discharge current
• operating Temperature : 0°C ~ 40°C
• dimensions: 87 x 183.3 x 126.6 mm
• weight: 430g
