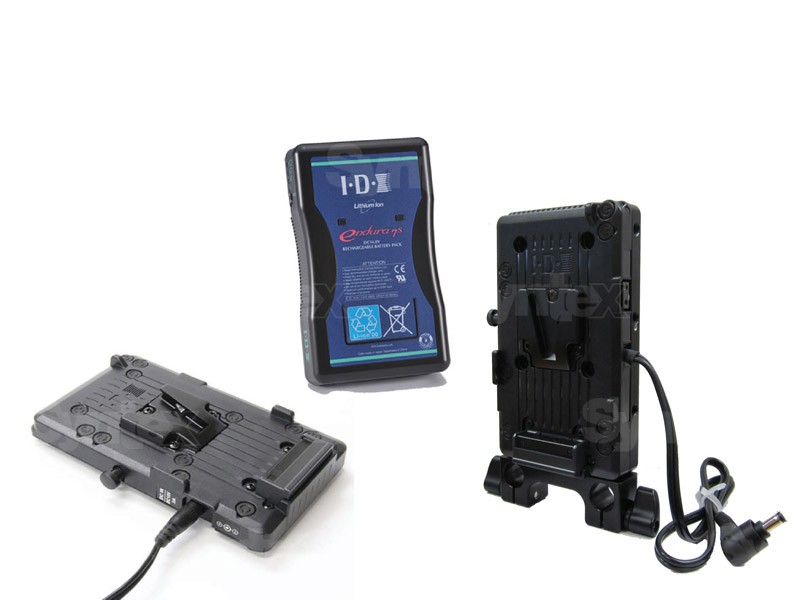

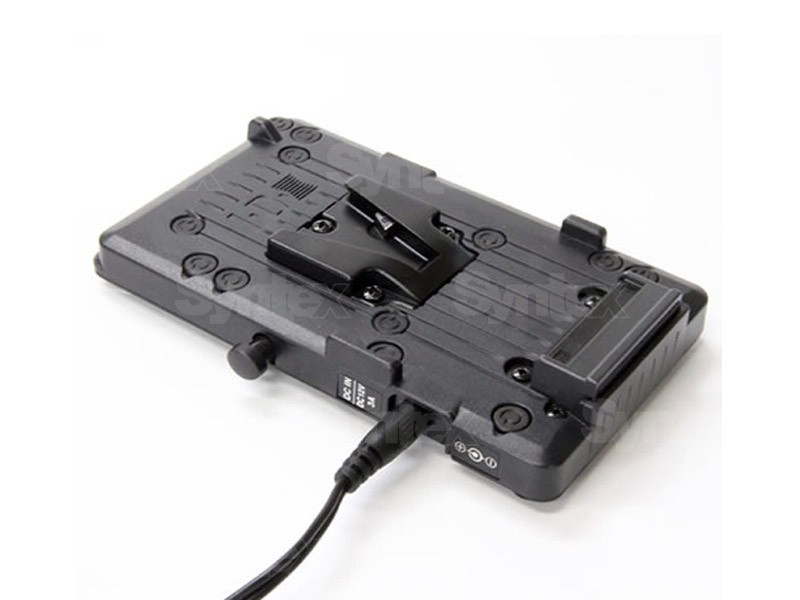

IDX VL-PVC1

1-Channel V-Plate Portable Charger
Now you can ‘charge on the run’ with the VL-PVC1….it’s the latest addition to our ENDURA charger product line-up.  When it has to be portable and compact for crew work or when keeping travel gear light, the VL-PVC1 delivers the small profile of our V-Plate combined with “robust” charging that works on all our ENDURA series 12V Lithium Ion batteries

SPECIFICATION

• AC Adaptor Input Voltage: AC 100~240V 50/60Hz
• AC Adaptor Output Voltage/Current: DC 12V/3A
• Charge Plate Input Voltage: DC 12V +/- 5%
• Power Consumption: 23W maximum
• Charge Method: Constant Current/Constant Voltage
• Charge Voltage/Current: DC 16.5V/1A (Lithium Ion Only)
• DC Output Connector: DC Jack (2.1mm)
• Operating Temperature: 32° F ~ 104° F
• Dimensions:
• V-Plate Charger: 3.3(W) x 1.1(H) x 5.6(D) inches
• AC Adaptor: 1.8(W) x 1.5(H) x 2.9(D) inches
• DC Cable: 59.7 (L) inches
• Weight: 0.79 lbs. approx.
