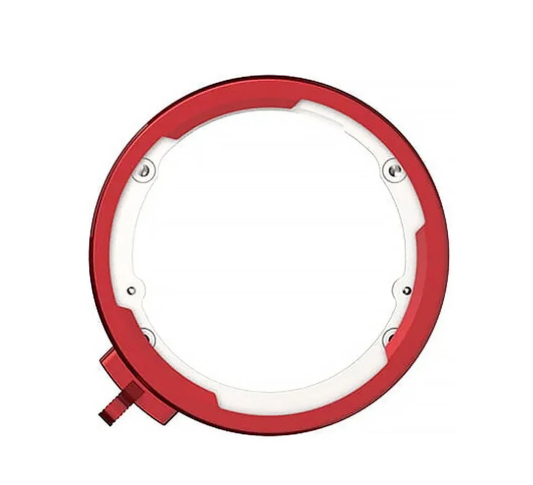

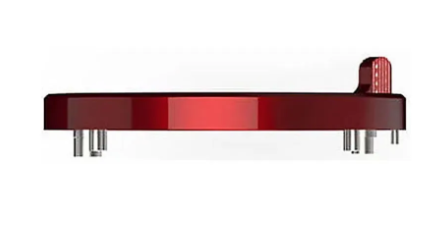

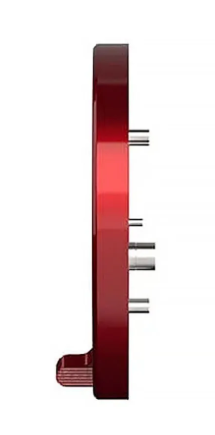

Kinefinity KineMOUNT

The Kinefinity A230-100-01 KineMOUNT is the native universal lens mount for MAVO Edge 8K, Edge 6K, and MAVO mark2 cameras, featuring an ultra-short 12 mm flange focal distance that enables tool-free swapping between active EF, PL, LPL, and e-ND adapters—delivering rock-solid, play-free lens attachment and maximum creative flexibility in a single, future-proof system.

The Kinefinity A230-100-01 KineMOUNT is the heart of lens versatility on MAVO Edge 8K/6K and MAVO mark2 cameras. Its 12 mm native flange—shorter than any competing cinema camera—allows direct mounting of active adapters without spacers or shims, preserving optical performance and back-focus accuracy. The stainless-steel bayonet with four locking lugs and spring-loaded active pins supports full electronic communication across EF3 (iris/AF/IS), PL II, LPL, and e-ND variants, plus the unique KineEnhancer tele-converter for S35 sensors. Switching mounts takes under 10 seconds using the captive tool-free thumbscrews, while the recessed design protects lens rear elements.

Key features

• Native 12 mm ultra-short flange focal distance
• Tool-free adapter swapping (EF3, PL II, LPL, e-ND, KineEnhancer)
• Full electronic passthrough (iris, AF, IS, metadata)
• Active spring-loaded contact pins + 4-lug stainless bayonet
• Supports adapters with built-in e-ND (0.6–2.4) and 1.5× KineEnhancer
• Zero back-focus shims required (factory calibrated)
• Recessed design protects lens rear elements
• Compatible with all MAVO Edge 8K/6K and MAVO mark2 bodies
