Kinefinity NATO Rail

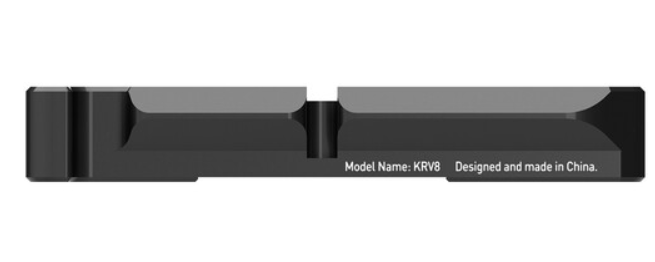

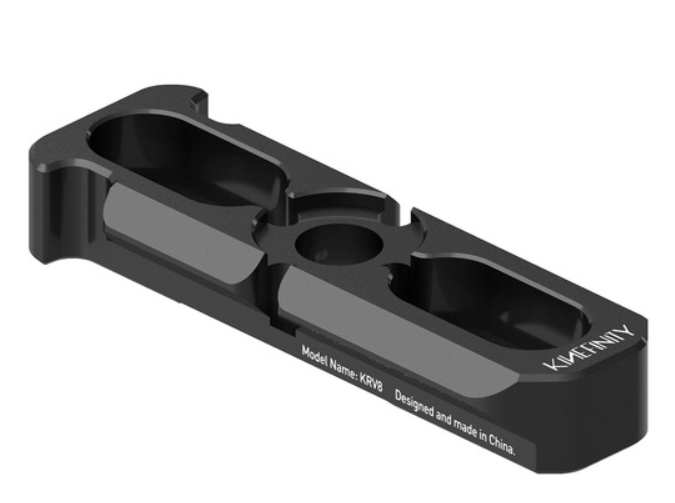

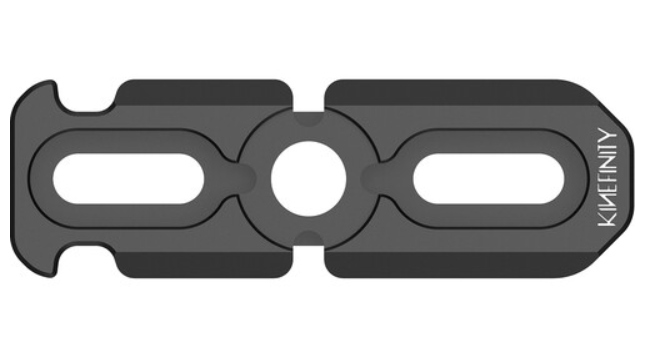

The Kinefinity K611-008-01 is a 2.6" black NATO rail for mounting top handles or viewfinders. Features two 1/4"-20 screw slots and a center hole for secure attachment. Lightweight (17 g) and compact (65 x 20 x 10 mm) for professional rigging.

More information

18 € with VAT 14.88 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Kinefinity K611-008-01 is a 2.6" black NATO rail for mounting top handles or viewfinders. Features two 1/4"-20 screw slots and a center hole for secure attachment. Lightweight (17 g) and compact (65 x 20 x 10 mm) for professional rigging.

The Kinefinity K611-008-01 NATO Rail is a precision-engineered 2.6-inch accessory rail designed for seamless integration with Kinefinity cinema cameras and compatible rigs. Crafted from durable, lightweight aluminum in a sleek black finish, it provides a standardized NATO interface for quickly attaching top handles, viewfinders, monitors, or other accessories without tools. The rail includes two 1/4"-20 threaded slots for secure mounting via separately available screws, plus a central through-hole for additional fastening options. At just 17 g and measuring 65 x 20 x 10 mm, it adds minimal weight and bulk while enhancing workflow efficiency in professional video and film production environments.

Key Features:

  • 2.6" NATO standard rail for fast, secure accessory attachment
  • Two 1/4"-20 screw slots for flexible mounting
  • Center through-hole for alternative screw or pin-locking
  • Lightweight aluminum construction (17 g) with black anodized finish
  • Compact dimensions ideal for handheld or gimbal rigs
  • Compatible with Kinefinity handles, viewfinders, and third-party NATO accessories

PACKAGE CONTENT

  • 1* Kinefinity NATO Rail (2.6")

SPECIFICATIONS

  • Model: K611-008-01
  • Type: NATO Rail
  • Length: 2.6 in / 65 mm
  • Width: 0.8 in / 20 mm
  • Height: 0.4 in / 10 mm
  • Mounting:
    • 1 x Center through-hole
    • 2 x 1/4"-20 threaded slots
  • Material: Aluminum
  • Color: Black
  • Weight: 0.6 oz / 17 g
  • Compatibility: Kinefinity cameras and NATO-standard accessories
Parameters

Parameters

Manufacturer: Kinefinity
Category: Miscellaneous
