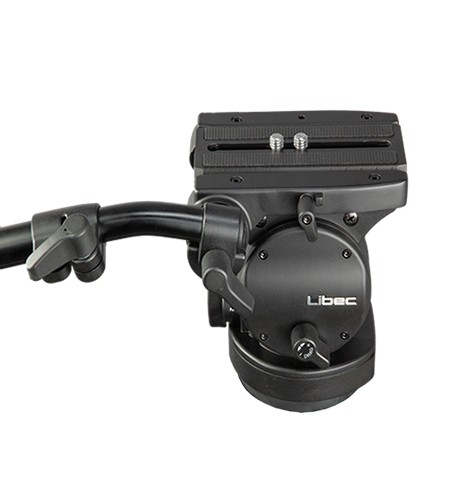

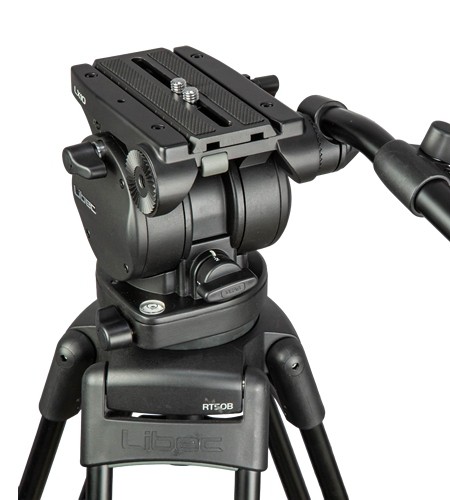

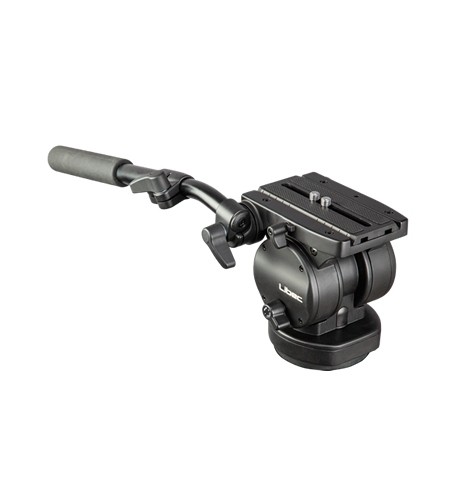

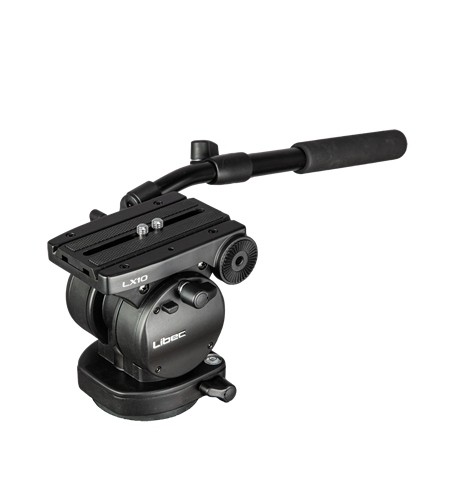

Libec LX10 Head

The Libec LX10 Head is a 100mm ball head with a handle and a load capacity of 16 kg.

The LX10 head is characterized by its durability and robustness and a high load capacity of 16 kg. Thanks to its 100 mm ball mount, it can be attached to your existing tripod with an industry standard 100 mm mount. It is also an ideal accessory for Libec's P110B and P110S pedal systems.

Robust and durable design
The extremely sturdy construction ensures high reliability even in demanding conditions and requires almost no maintenance.

Preferred resistance control
The resistance during panning and tilting can be adjusted in two levels according to the weight of the camera system, allowing two types of preferred resistance control for the user.

Smooth resistance unit
The multi-layer metal unit in the resistance system ensures easy operability, durability, and reliability. Thanks to the finely applied silicone lubricant, the resistance unit offers smoother starts and stops and significantly improved recoil control and reduction.

Technical specifications:

• Load capacity: 16 kg
• Counterweight: FIX
• Resistance mode (drag mode): 2 LEVELS
• Tilt angle: +85° / -65°
• Temperature range: -20°C to +60°C
• Spirit level: Available
• Camera plate: Sliding plate
• Sliding range: +/-50 mm
• Head base: 100 mm ball
• Plate mounting: 3/8" screw × 2
• Spare screw: 3/8" screw
• Weight: 3.6 kg
• Head attachment: 100 mm hemisphere
