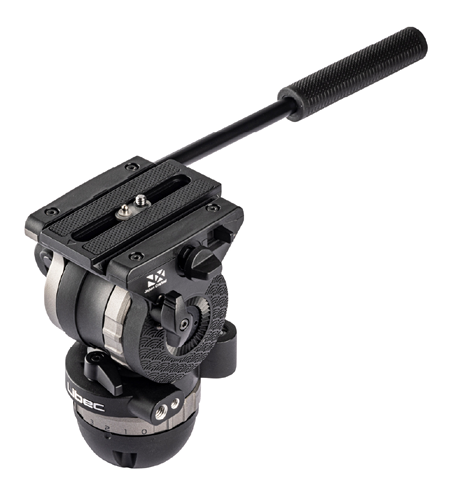

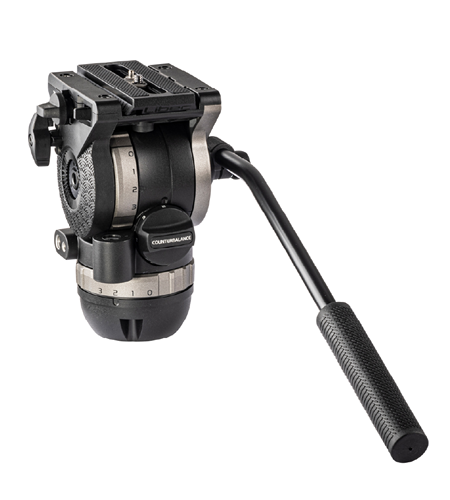

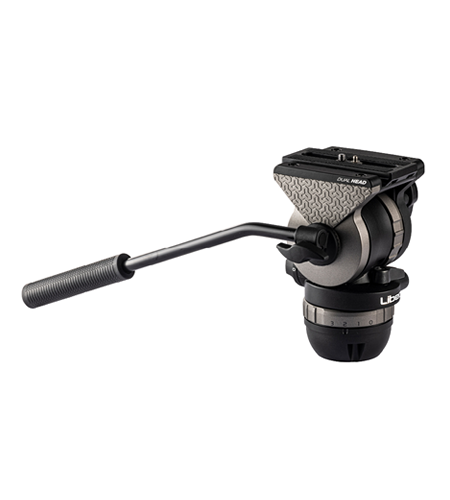

Libec NH40

Video head (for 75mm ball and flat mount) with swivel lever and 10 kg load capacity.

The new NH40 video head features improved durability for long-term use and significantly increased clamping force of the sliding plate and locking force of the pan and tilt mechanism.

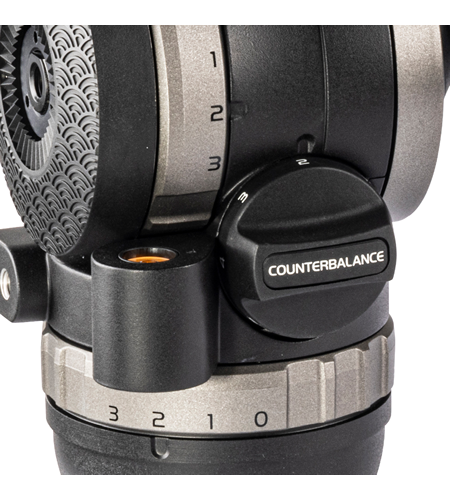

Compared to previous models, the "clicking" feel of each resistance control wheel has been improved, and their clarity has also been increased by adding indicator marks to the counterweight control wheel and resistance control wheels.

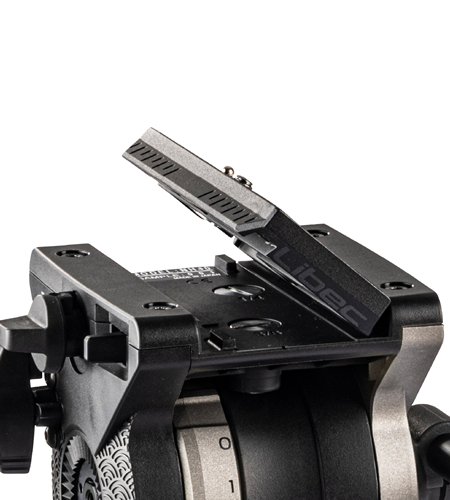

Snap-on/off plate

The camera plate can be attached and removed with a single touch, allowing for quick and easy setup.

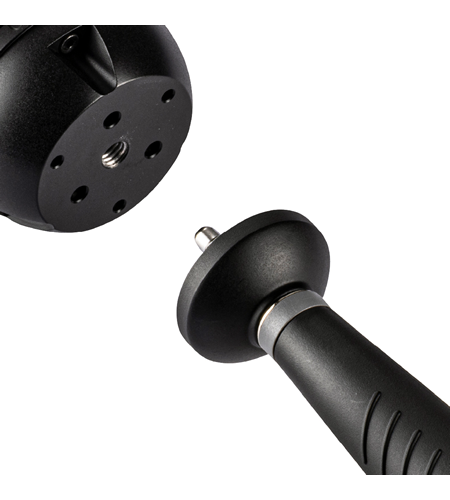

Dual head

The dual head design is compatible with both 75mm hemispheres and flat tripod bases. It can be mounted on sliders, camera dollies, and other equipment.

Adjustable spacer

Removing the spacer pad from the clamp extends the length of the thread for insertion, expanding the range of devices that can be attached to the head.

Technical parameters:

• Counterweight range: 0 to 10 kg (C.G. 55 mm)
• Load capacity: 10 kg
• Counterweight: free + 5 steps
• Resistance mode: free + 3 steps
• Resistance system: multi-layer metal construction
• Tilt angle: +90° to -70°
• Temperature range: -40 °C to +60 °C
• Spirit level: backlit
• Camera plate: compatible with sliding plate
• Compatible with Manfrotto and Sachtler heads
• Sliding range: +/- 30 mm
• Long sliding plate: included
• Head base: 75 mm hemisphere/flat base
• Plate attachment: 1/4" screw with video pin

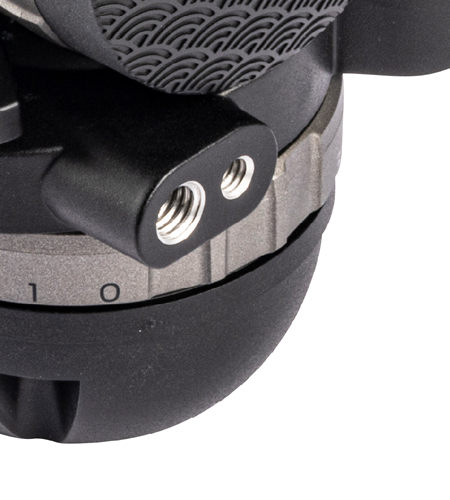

• Accessory attachment: holes for 1/4" and 3/8" screws
• Spare screws: 1/4" and 3/8"
• Weight: 1.8 kg
