Manfrotto Double Arm 3-Section

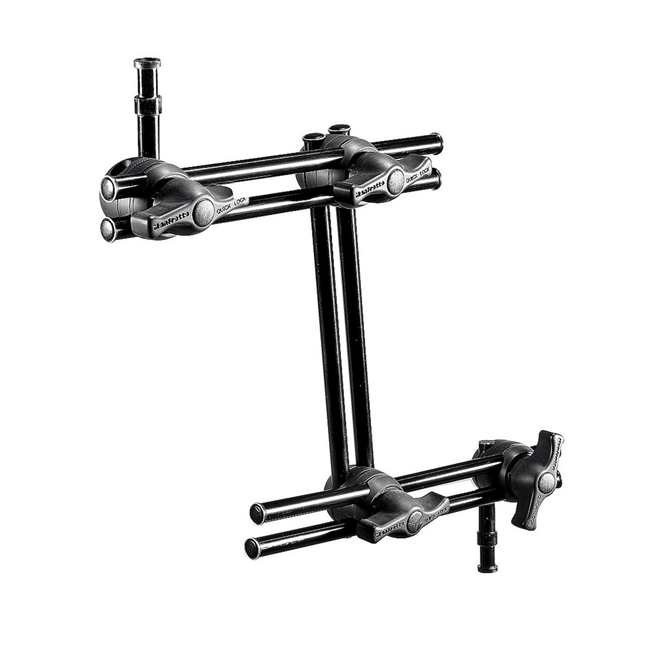

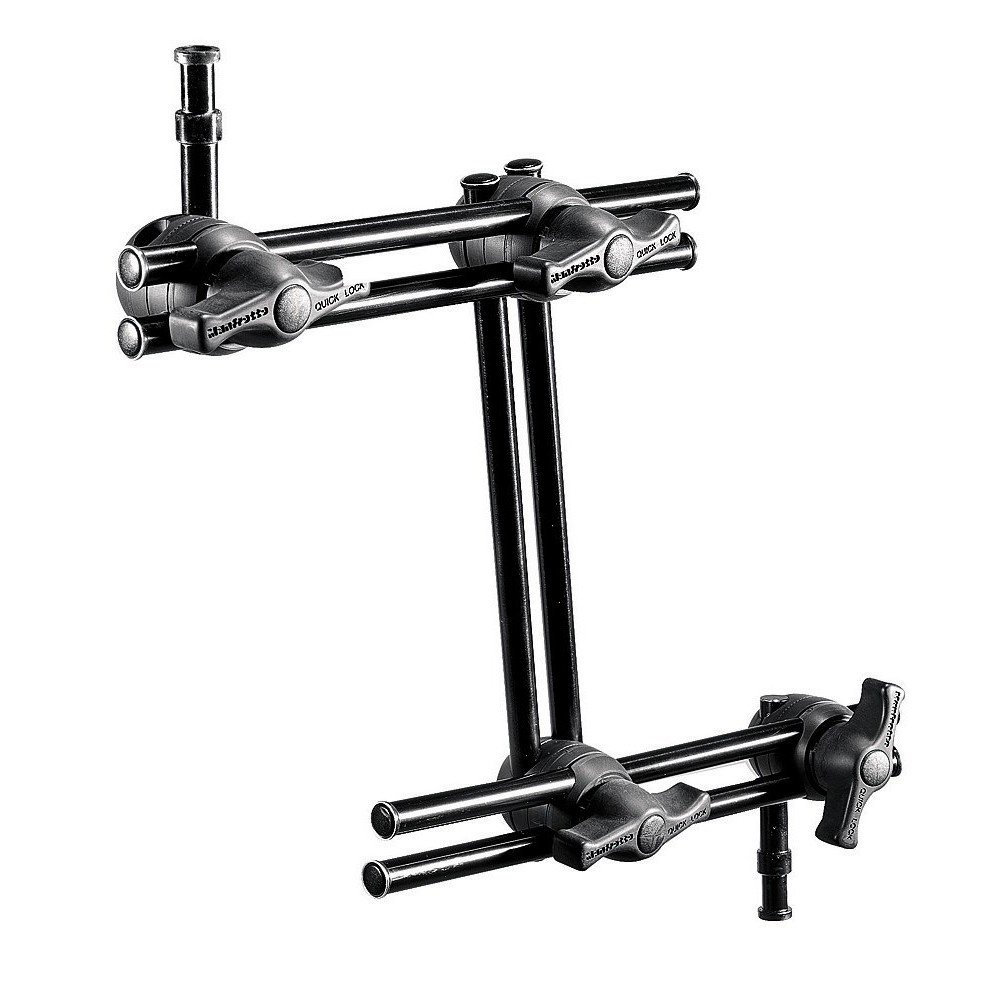

The Manfrotto 396AB-3 is a robust 3-section black aluminum double-articulated arm (860 mm max reach, 4.5 kg payload, 790 g) with quick-lock levers, extendable sliding centre section, 16 mm hexagonal/universal bottom spigot (Super Clamp compatible), and top 5/8" stud + 3/8" female thread—delivering superior strength and versatility without the camera bracket.

The Manfrotto 396AB-3 features three articulated sections with a unique sliding extension that reaches 86 cm while maintaining extreme rigidity under 4.5 kg loads. Instant quick-lock levers secure every joint in one motion and the anti-rotation hexagonal + universal 16 mm bottom spigot locks rock-solid into Super Clamps, stands or Autopoles. The top end offers a 16 mm baby stud with captive 3/8"-16 female thread for lights, monitors, microphones, or any standard accessory. At just 790 g, it’s the perfect heavy-duty yet lightweight solution for gaffers, product photographers, and videographers needing precise, flex-free positioning of LED panels, strobes, or small cameras in studio or on location.

Key features

• 3-section articulated arm with sliding extension
• Quick-lock lever system (one-handed operation)
• 86 cm maximum length
• 4.5 kg payload
• Top: 5/8" (16 mm) stud + 3/8"-16 female thread
• Bottom: 16 mm hexagonal/universal anti-rotation spigot
• Super Clamp compatible (no rotation)
• Black anodized aluminum
