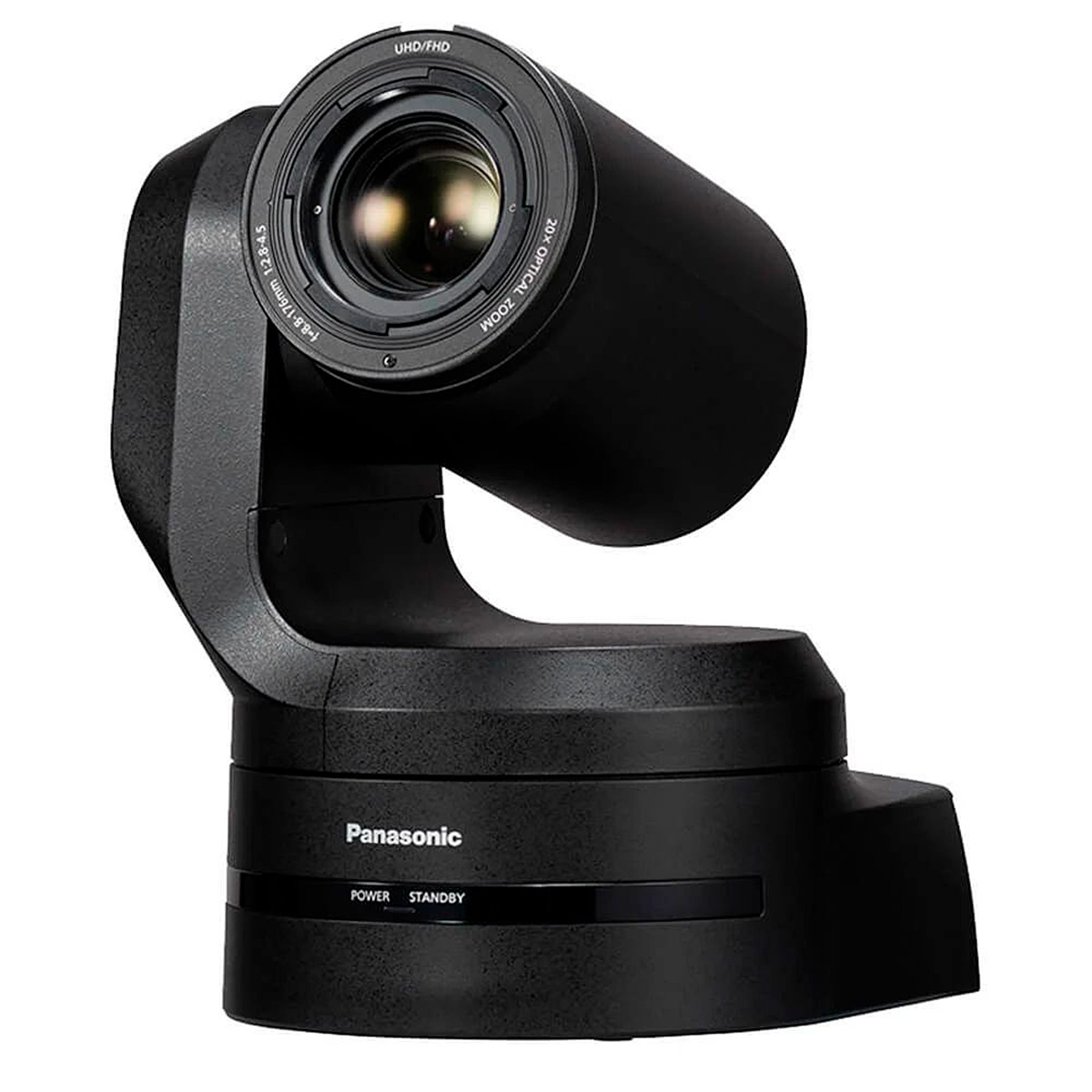

Panasonic AW-HE145

The AW-HE145 FHD installation camera is equipped with a highly sensitive (F9/2000lx) 1" MOS sensor for smooth shooting in low light conditions, e.g. in concert halls, lecture and conference rooms, places of worship, classrooms, etc. Black version.

The Panasonic AW-HE145 PTZ camera offers a sensitive HD sensor, integrated wide-angle lens (horizontal FOV up to 75.1°) with 20x optical zoom, HDMI and 3G-SDI outputs with support for up to 1080p60 video, RJ-45 network interface with support for RTSP/RTMP streaming and PoE+ power supply, remote control via web browser or optional HW controller (RS-422), integrated ND filters (Clear, 1/4, 1/16, and 1/64), as well as nDI|HX license license included (for integration into NDI infrastructure) or optional Panasonic Auto-Tracking Software (for automatic detection and tracking of performers). It also supports the SRT ("Secure Reliable Transport") protocol for stable and secure video transmission within IP networks.

• Highly sensitive 1" MOS sensor (horizontal resolution 1000 TV lines, gain 0-36 dB, S/N 60 dB)
• Wide-angle lens with 20x zoom, AF/MF; 10x digital zoom
• Focal length 8.8-176 mm (24.5-490 mm 35 mm equivalent), f/2.8-4.5, horizontal FOV up to 75.1°
• High Dynamic Range (HLG) and Night Mode functions

• SRT (Secure Reliable Transport) protocol support
• H.265/H.264/M-JPEG video compression, AAC-LC audio compression
• Motion range 175° (pan), -30 - 90° (tilt)
• 1080p60 3G-SDI, HDMI, and IP video outputs
• Stereo analog audio input (3.5 mm with line/microphone level)
• Power supply 1x XLR 4-pin (12 V=), PoE
• Remote control via web interface or optional Panasonic AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ hardware consoles
• IP streaming: H.264, H.265, M-JPEG, RTP, RTSP, TCP, UDP; 1080p, 720p, 480p, 360p @ 24p, 25p, 30p, 50p, 60p (0.5 - 24 Mb/s)
• Dimensions approx. 267 x 219 x 213 mm, weight 4.1 kg
