Rean RT4FC-B

SKU: RT4FC-B

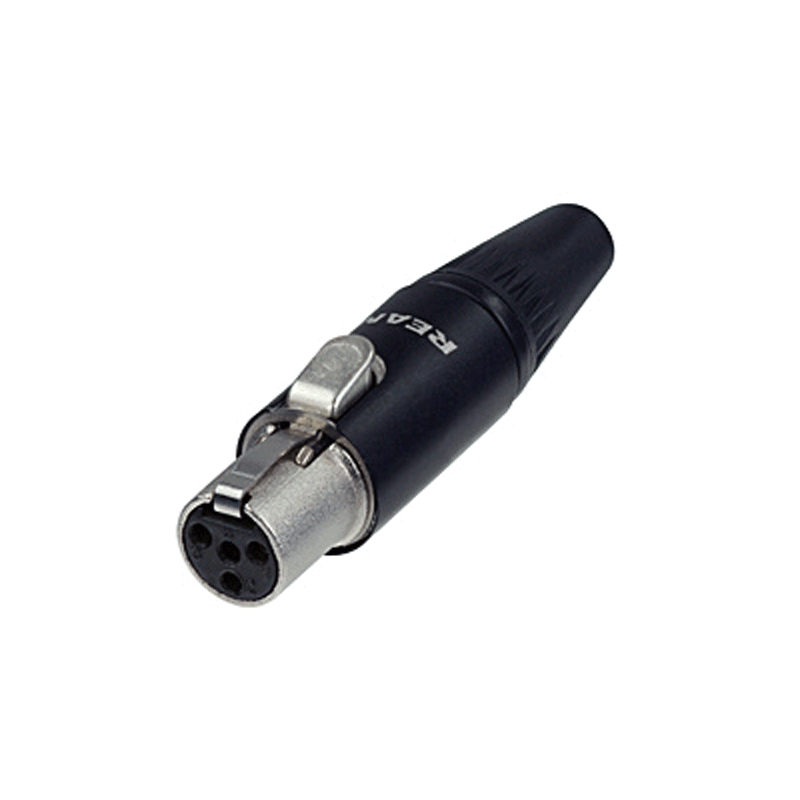

REAN RT4FC-B (Female) is a 4-pole mini XLR cable connector with black metal housing and gold-plated contacts.

More information

2.3 € with VAT 1.9 € without VAT
Add to Compare Price history
Availability
Shipment day: 19. 10.
To be sent > 5 pcs
Bratislava > 5 pcs, Budapest 5 pcs
SKU:
RT4FC-B
Add to Compare Price history

Rean RT3MC-B

In stock > 5 pcs2.8 €without VAT 2.31 €

Rean RT3FC-B

In stock > 5 pcs3.9 €without VAT 3.22 €
Product description

Product description

REAN RT4FC-B (Female) is a 4-pole mini XLR cable connector with black metal housing and gold-plated contacts.

Technical Specifications

  • Contact resistance:≤ 10 mΩ
  • Rated voltage 1min:0.5 kVdc
  • Insulation resistance:> 1 GΩ
  • Rated current per 1 contact:5 A
  • Cable diameter:2.0 - 4.0 mm
  • Lifetime:> 5000 connection cycles
  • Conductor: max. 0.22 mm², max. 24 AWG
  • Soldering
  • Cable cap:ABS/TPU
  • Contact finish:Au
  • Contact Material:Bronze (CuSn6)
  • Polyamide (PA 6.6 30% GR)
  • Connector body:Zinc diecast (ZnAl4Cu1)
  • Connector body finish:black chrome

Parameters

Parameters

Manufacturer: Rean
Category: Power connectors

Main parameters

TypeMini XLR

Other parameters

VersionOn the cable · Soldering · Females
