RGBlink MSP 314-2

The RGBlink MSP 314-2 is a compact DVI fiber extender that transmits high-definition video signals over long distances using multi-mode or single-mode fiber. Supporting VESA resolutions up to WUXGA (1920x1600) and SMPTE formats, it is ideal for extending DVI signals up to 500 m on multi-mode fiber or 2000 m on single-mode fiber for professional AV installations and control rooms.

The RGBlink MSP 314-2 is a high-performance DVI fiber extender designed to reliably transmit video signals over long distances while maintaining image quality. Equipped with a built-in WDM wave plate and 1310 nm/1550 nm laser diode optical source, it supports both multi-mode fiber (50/125 µm or 62.5/125 µm) and single-mode fiber, offering transmission distances of up to 500 m and 2000 m, respectively.

The device is compatible with a wide range of resolutions, supporting VESA up to WUXGA (1920×1600) at 60 Hz and SMPTE formats including 480i, 576i, 720p, and 1080p. Its compact design makes it easy to integrate into professional AV systems, conference rooms, live event setups, and digital signage installations.

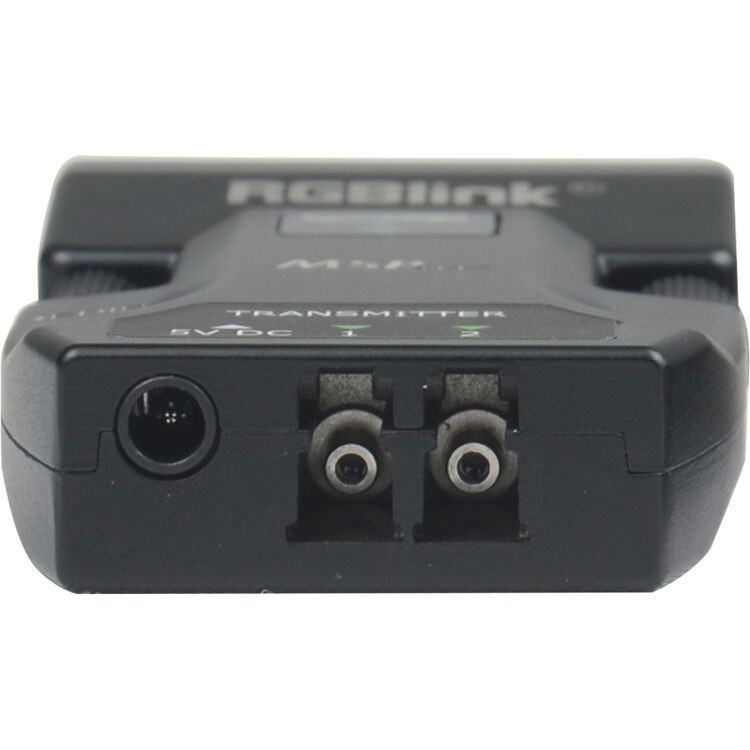

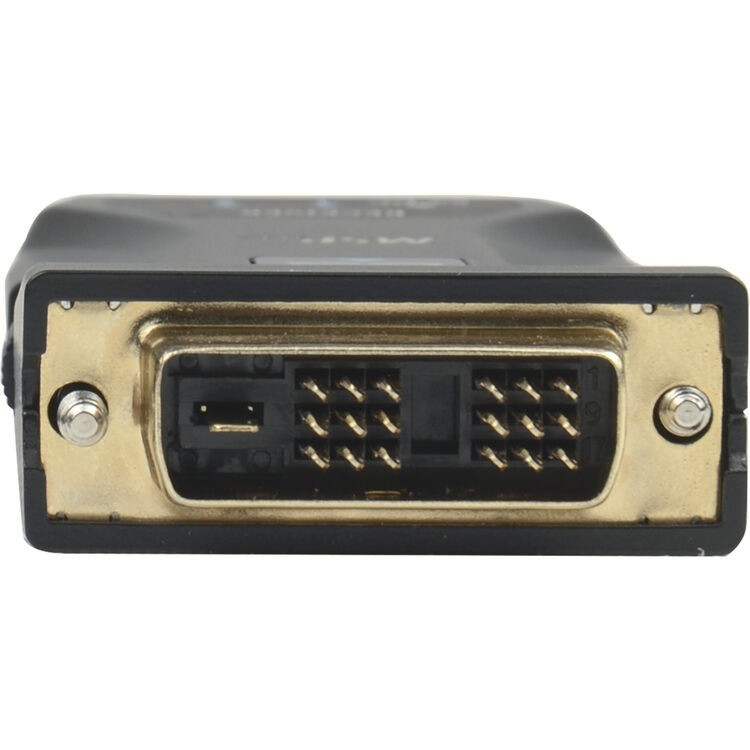

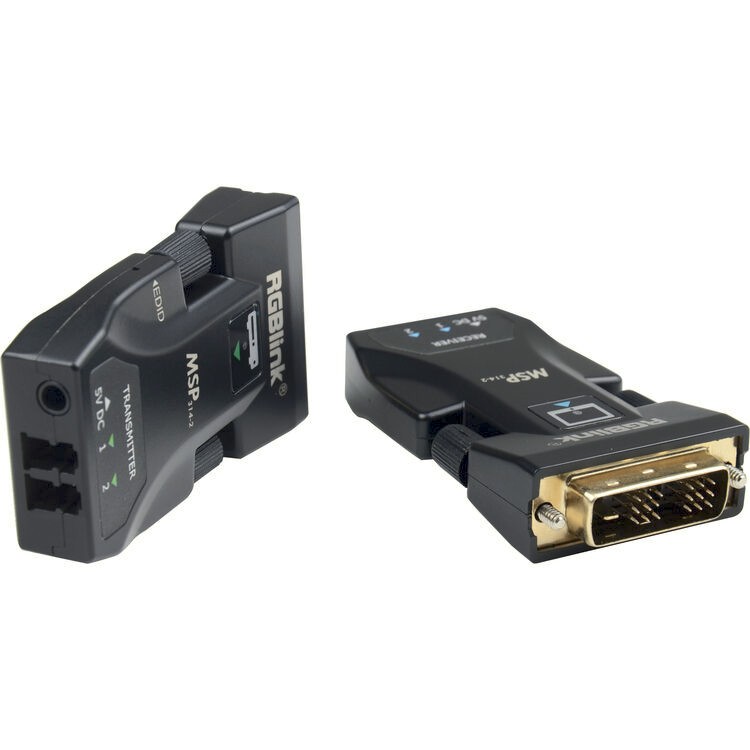

The MSP 314-2 features separate transmitter and receiver units, with DVI input/output for high-quality video and LC fiber connectors for multi-mode or single-mode optical transmission. Its low power requirement (5 V DC) and lightweight shell (0.16 kg) make it suitable for flexible deployment in various setups.

Key Features:

• Extend DVI signals over fiber: 500 m (multi-mode), 2000 m (single-mode)
• Supports VESA resolutions up to WUXGA (1920×1600) 60 Hz
• Compatible with SMPTE 480i/576i/720p/1080p formats
• Built-in WDM wave plate, 1310 nm/1550 nm laser diode optical source
• Compact, lightweight design for easy integration
• Transmitter and receiver included for plug-and-play operation
