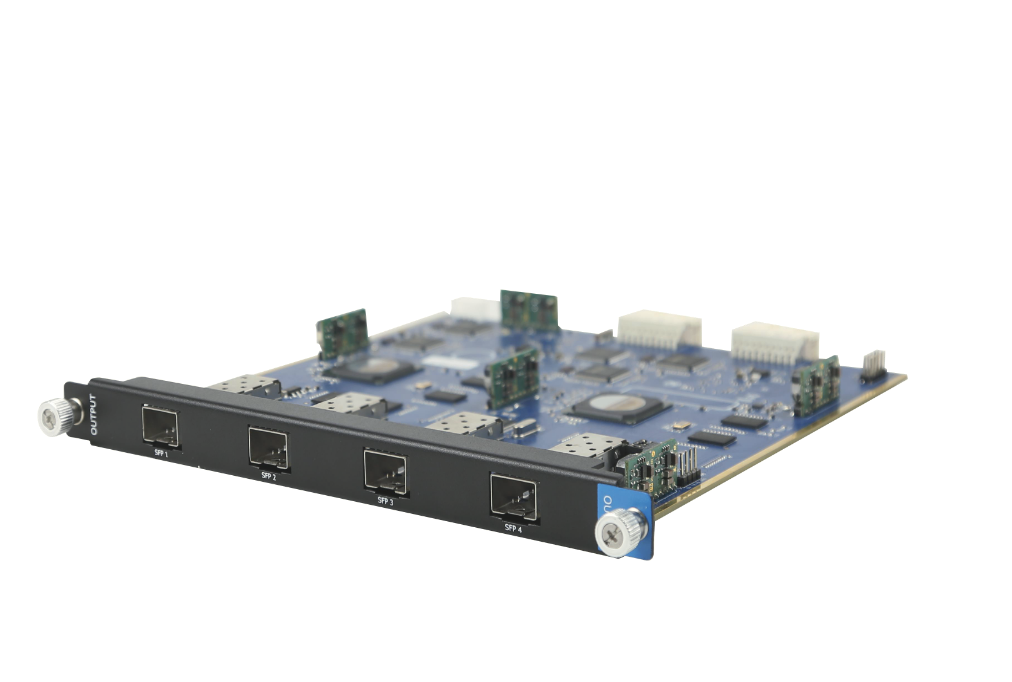

RGBlink multi-mode SFP

The RGBlink Multi-Mode SFP is a professional quad-fiber output module supporting both single-mode and multi-mode SFP transceivers, designed for high-speed, long-distance video signal transmission in broadcast and AV systems.

The RGBlink Multi-Mode SFP provides reliable and flexible fiber connectivity for professional video distribution. Equipped with four LC SFP outputs, it supports both single-mode (1310 nm) and multi-mode (850 nm) fiber, making it suitable for a wide range of installation environments. With a 10 Gbps transmission rate, the module ensures stable delivery of high-quality video signals with minimal latency.

The unit supports a broad range of SMPTE and VESA resolutions, including high-resolution formats up to 2048×1152@60Hz and 2560×816@60Hz, making it ideal for broadcast control rooms, LED wall systems, large venues, and corporate AV applications. Single-mode fiber enables transmission distances of up to 10 km, while multi-mode fiber supports up to 300 meters. Hot-plug support allows SFP modules to be installed or replaced without powering down the system, ensuring maximum uptime and flexibility.

Key Features:

• Supports single-mode and multi-mode SFP modules
• Quad fiber output via LC connectors
• Up to 10 km transmission with single-mode fiber
• 10 Gbps high-speed data transmission
• Supports resolutions up to 2048×1152@60 and 2560×816@60
• Wide SMPTE and VESA resolution compatibility
• Hot-pluggable SFP design
• Compact and lightweight construction
