RGBlink RMS8424S

The RGBlink RMS8424S is a professional 4RU rack-mount dual-screen monitor featuring two independent 8-inch LCD panels with multi-format video support, making it ideal for broadcast control rooms, OB vans, and professional AV monitoring applications.

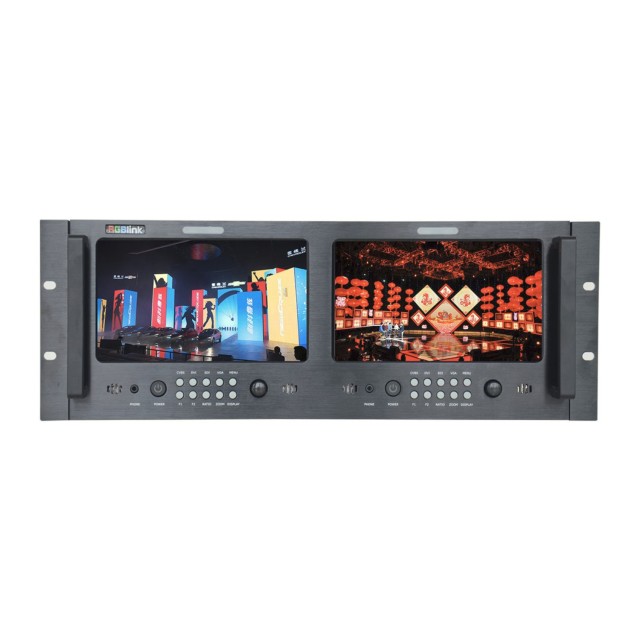

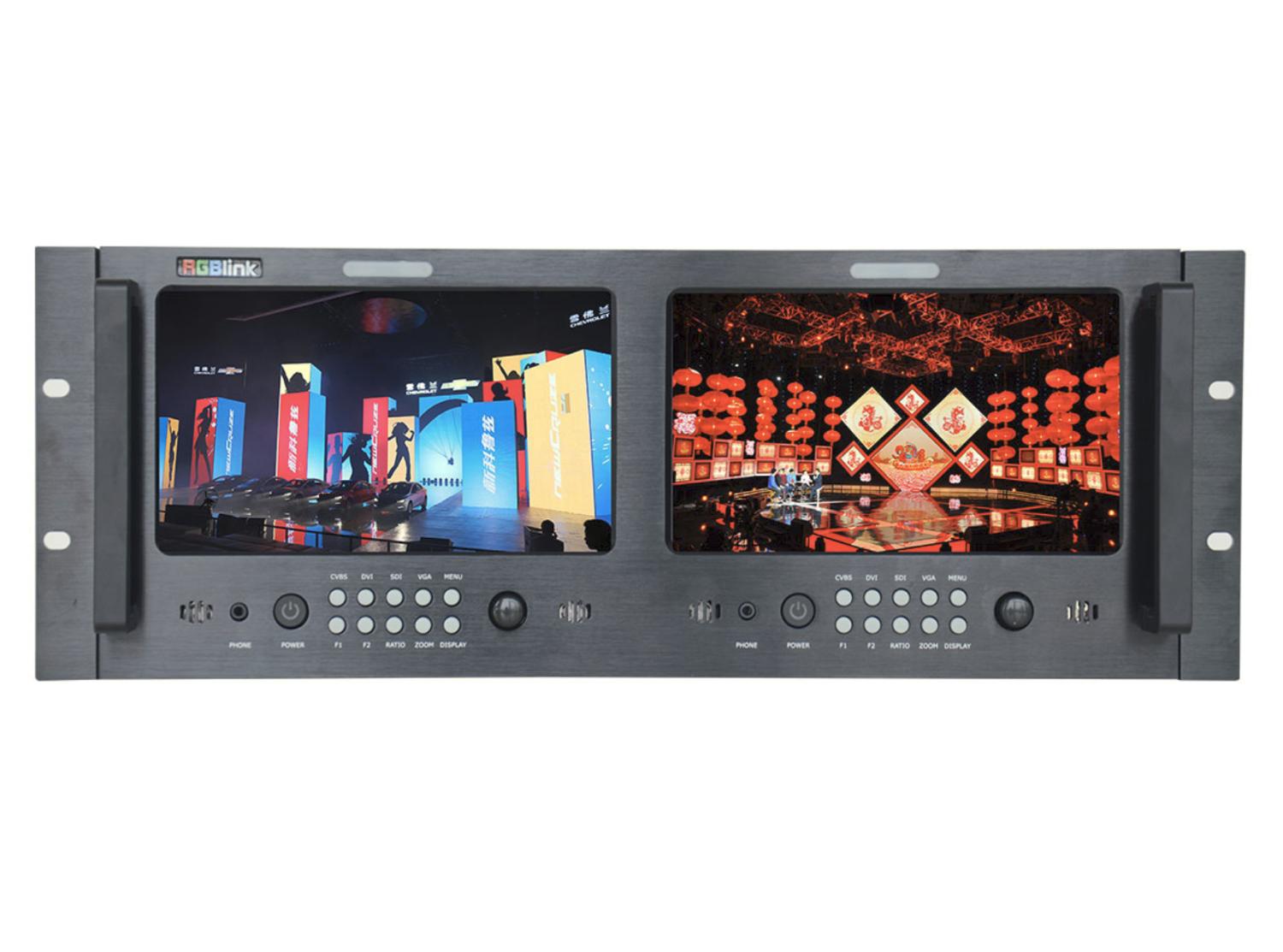

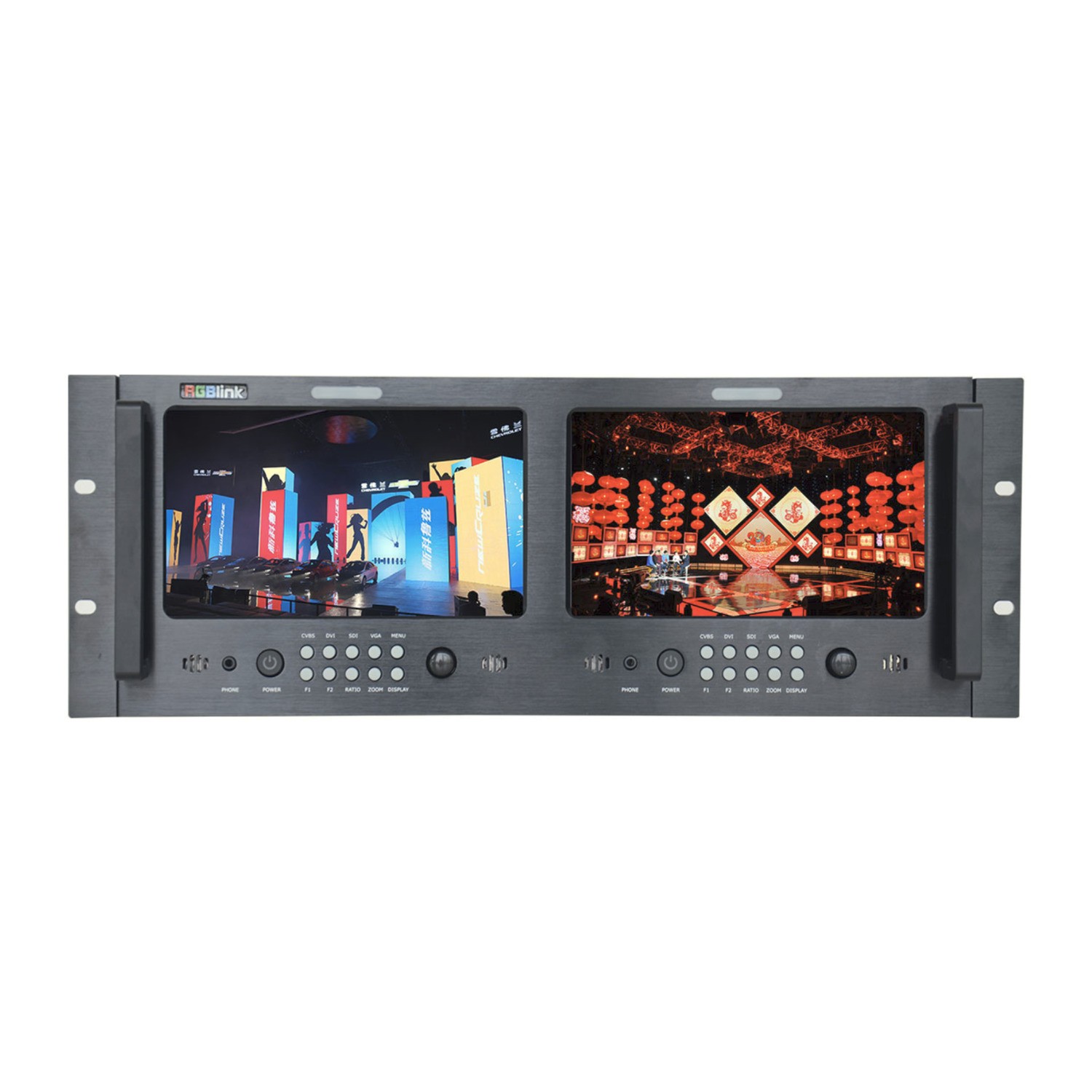

The RGBlink RMS8424S is a broadcast-grade 19-inch 4RU rack-mount LCD monitor designed for professional video monitoring in studios, mobile production units, and equipment racks. It integrates two independent 8-inch LCD displays, each with a native resolution of 1024 × 600 and adjustable 16:9 or 4:3 aspect ratios. Each screen operates independently, allowing users to monitor two different sources simultaneously with flexible signal routing and control.

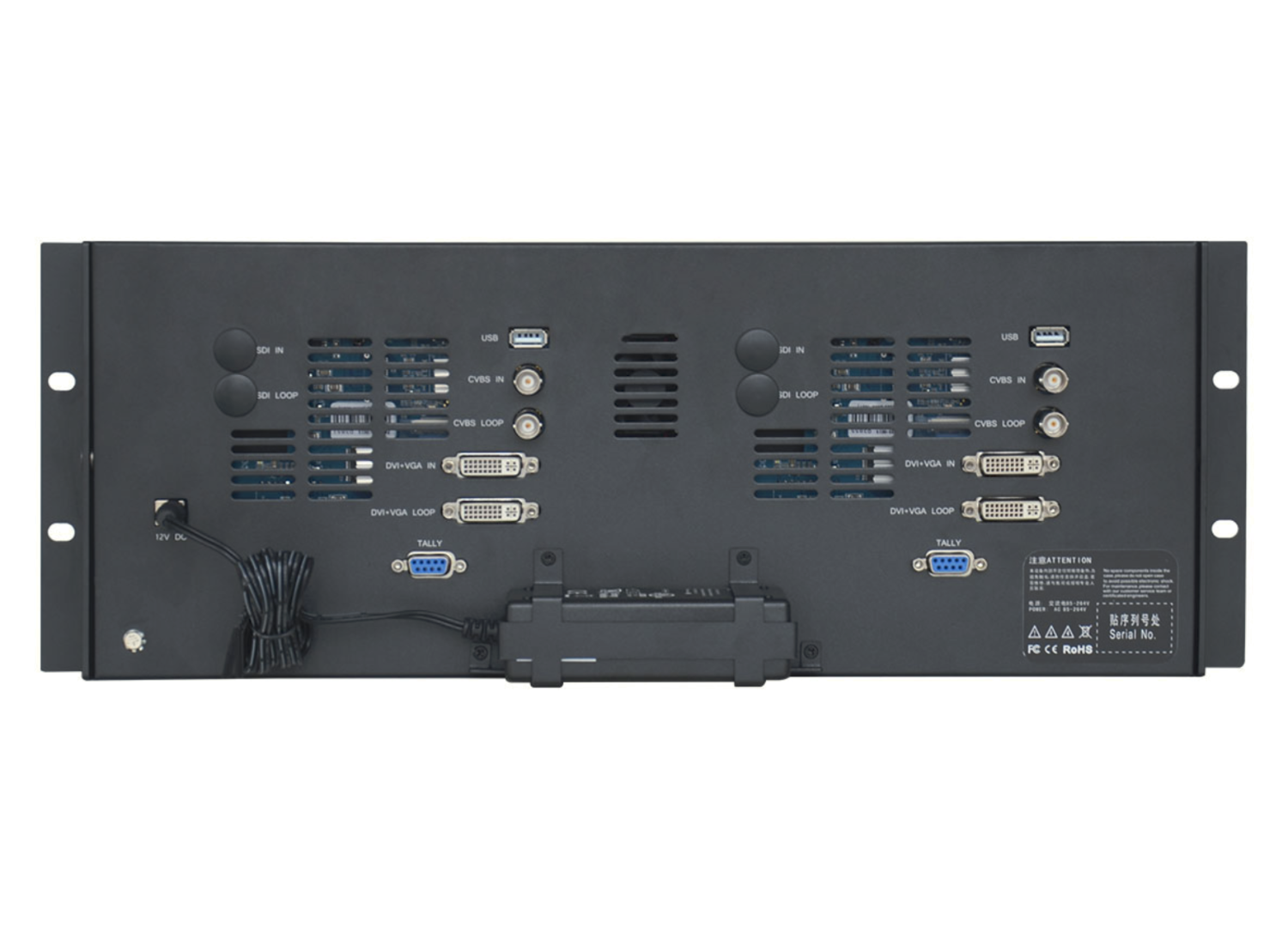

Each display supports a wide range of video inputs including 3G/HD/SD-SDI, DVI, VGA, and Composite (CVBS), with loop-through outputs available on every input for seamless signal distribution. The monitor supports automatic input standard detection, underscan/overscan switching, and an adjustable viewing angle structure for optimal visibility in rack environments. Embedded audio from SDI and HDMI sources can be monitored via a 3.5 mm headphone output. With a rugged rack-mount design, efficient 12V DC power operation, and support for tally control via D-SUB15, the RMS8424S is a reliable and versatile monitoring solution for professional broadcast and AV workflows.

Key Features:

• 19" standard 4RU rack-mount design
• Dual 8" LCD displays with independent control
• Native resolution: 1024 × 600 per screen
• Adjustable aspect ratio: 16:9 / 4:3
• Supports 3G/HD/SD-SDI, DVI, VGA, and CVBS
• Loop-through output on each input
• Auto input standard detection
• Underscan / overscan switch
• Embedded audio monitoring via 3.5 mm headphone jack
• Adjustable viewing angle structure
• Tally control via D-SUB15
• Low power consumption
