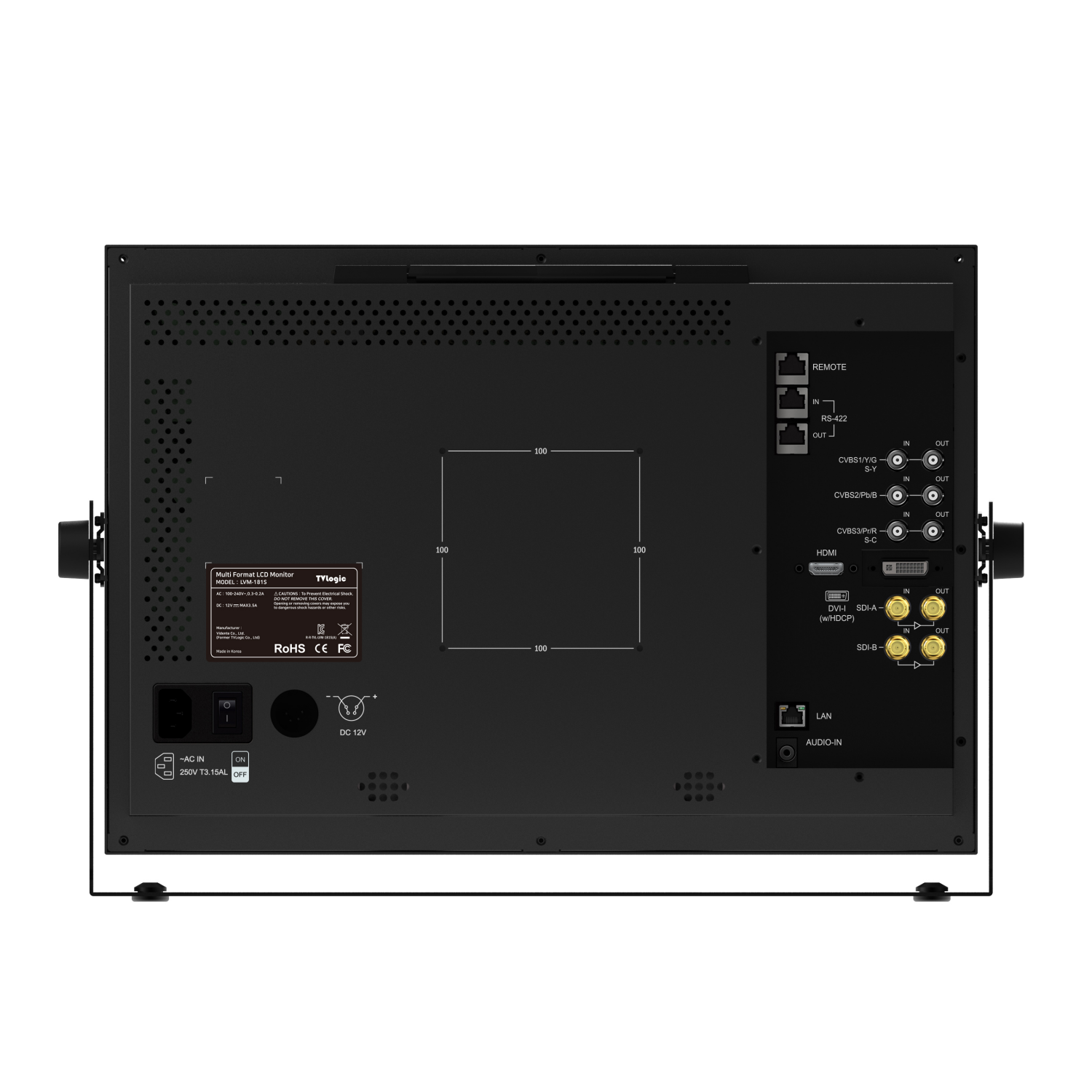

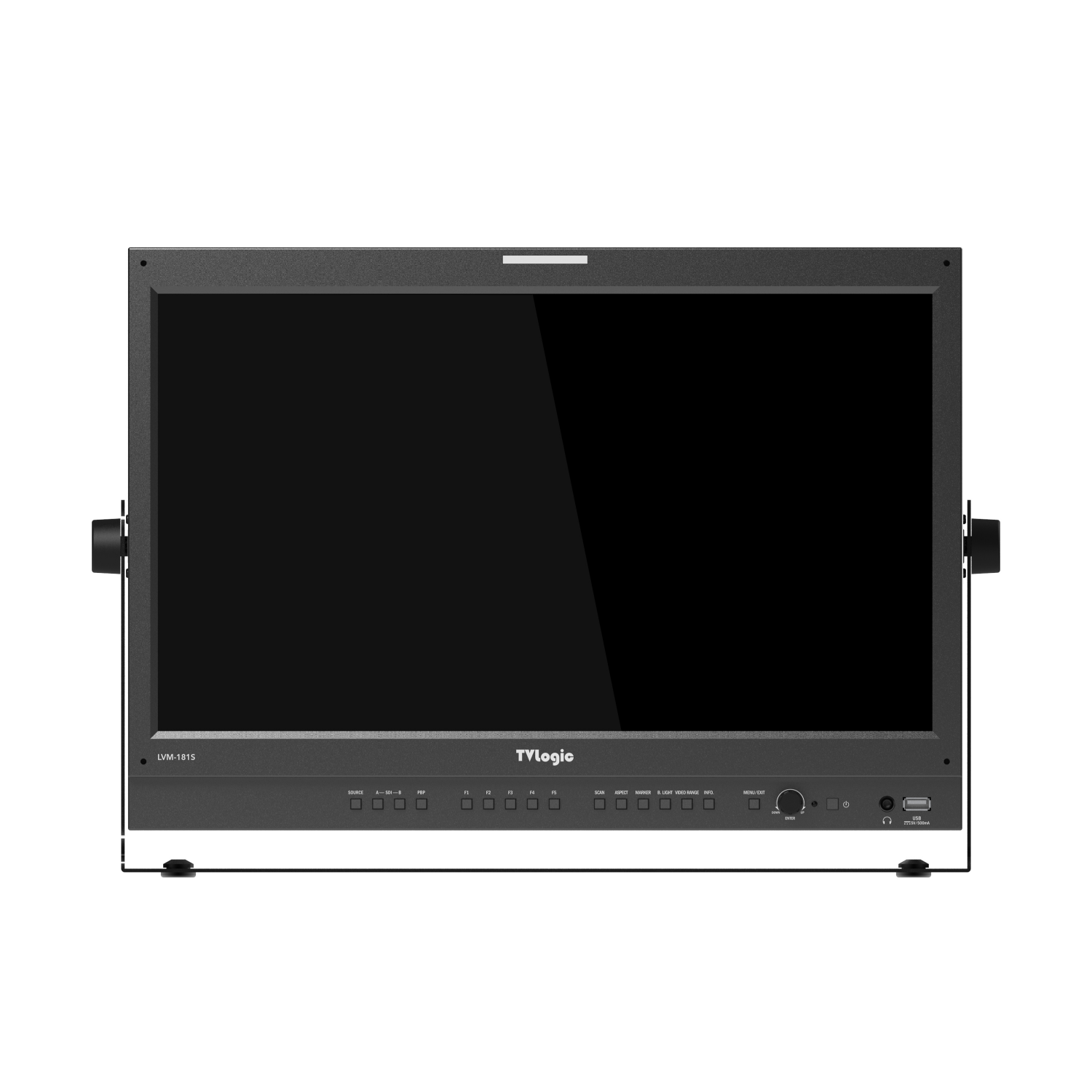

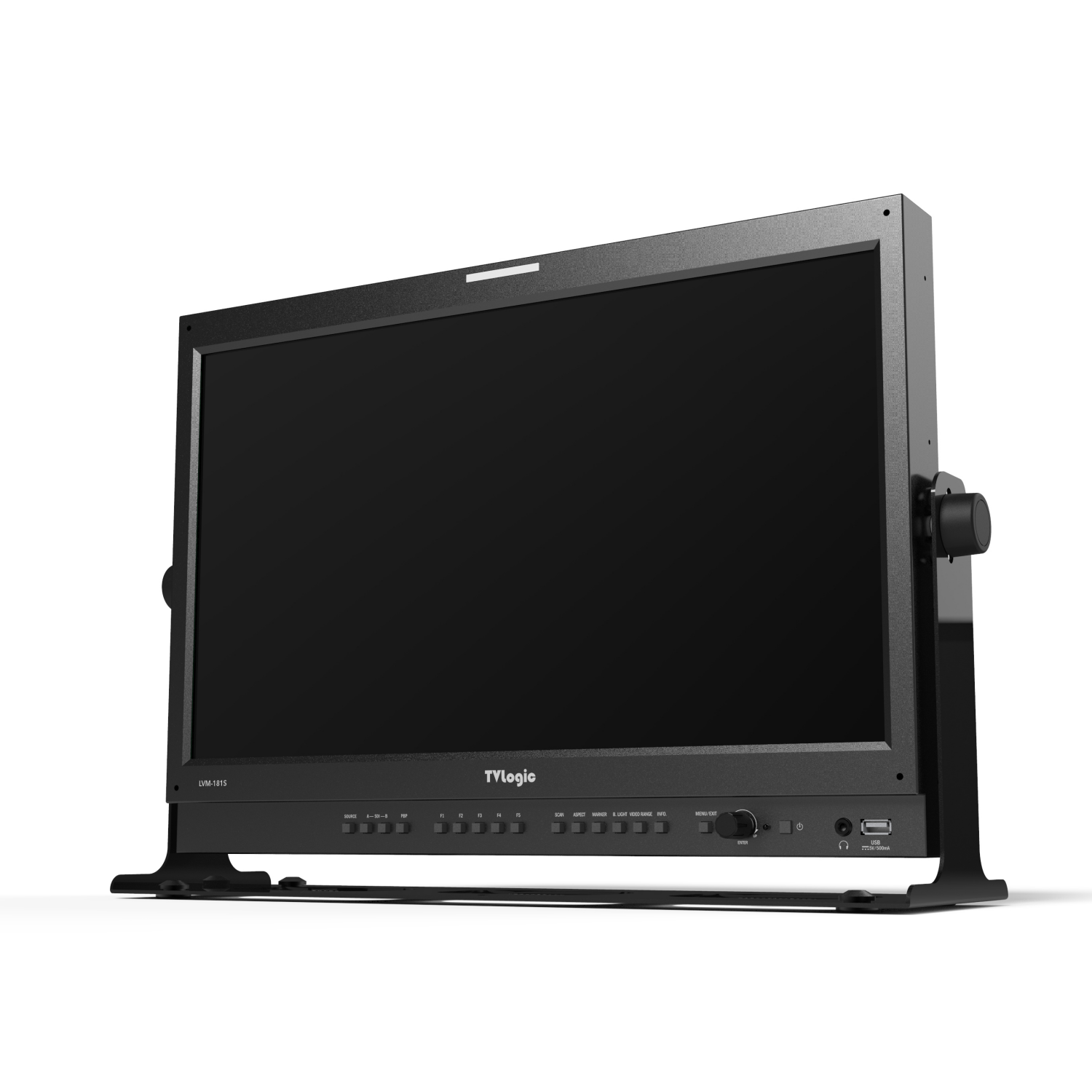

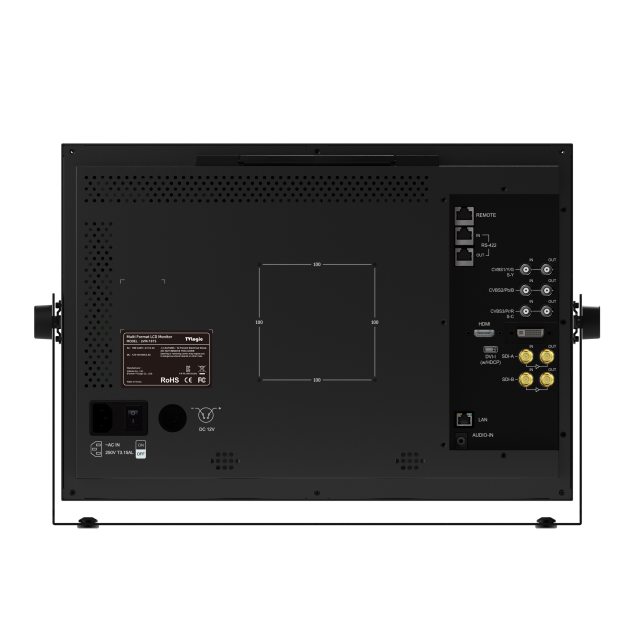

TVLogic 18.5" QC-Grade Wide Viewing LCD Monitor
SKU: TVL-LVM-181S
The LVM-181S is our top grade 18.5” model with a 18.5 inch IPS LCD panel with 1920x1080 native resolution, high brightness 500 nit, enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful dual-channel performance and artifact-free image reproduction.…
4 229 € with VAT
3 495.04 € without VAT
Availability
on request
Top accessories for TVLogic 18.5" QC-Grade Wide Viewing LCD Monitor
SmallRig Ultra Slim 4K mini HDMI cable 55cm 3041
SmallRig Ultra Slim 4K HDMI cable (C to A) with a length of 55cm. The HDMI 2.0 version
12 €
In stock > 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
In stock > 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 5,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
17 €
In stock 2 pcs
TVLogic V-Mount-17
This V-Mount Battery Plate from TVLogic enables you to power your compatible monitor
339 €
on request
Product description
The LVM-181S is our top grade 18.5” model with a 18.5 inch IPS LCD panel with 1920x1080 native resolution, high brightness 500 nit, enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful dual-channel performance and artifact-free image reproduction. Support for various cinema camera log-to-linear LUTs, easy field upgradability and a full array of image processing features are standard.
* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function
And in TVLogic monitors, HDR Emulation function includes the control parameters below;
* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)
Product description
HDR Emulation
A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.
* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function
And in TVLogic monitors, HDR Emulation function includes the control parameters below;
* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)
Ember+ control protocol
'Ember+' from LAWO group is a non-proprietary TCP/IP interface protocol for broadcast equipment. An Ember+ provider can "publish" parameters which may then be used by an Ember+ consumer. Please visit GITHUB site for more information.
1:1 Pixel Mapping Modes for SD/HD
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Blue Only / Mono
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
Custom 3D LUT Import
Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.
Focus Assist
Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Marker
Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Various Scan Modes
Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Waveform/Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
