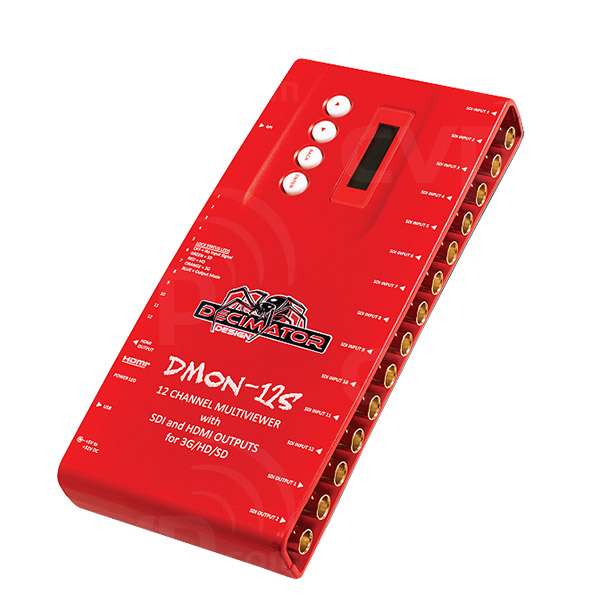

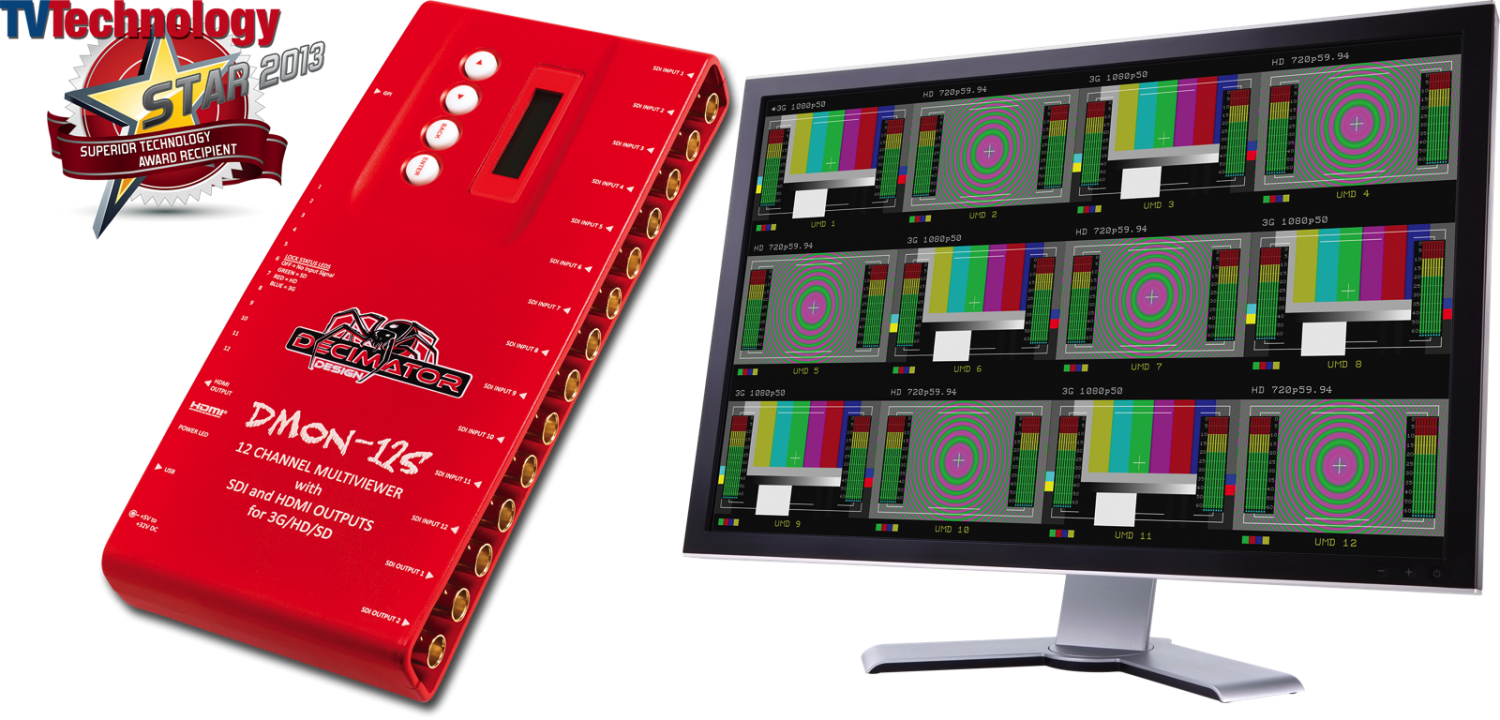

Decimator Design DMON-12S

1 to 12 Channel MultiViewer
with SDI and HDMI outputs for 3G/HD/SD
and Custom Layouts

Specifications:

• Low cost miniature (3G/HD/SD)-SDI 10 to 1 Multiviewer or 10 to 1 input multiplexer
• Various multiviewer layouts
• Selectable output format in Multiviewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 10 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per quadrant
• Pass-Through mode allowing any of the 10 inputs to be selected for output
• In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
• This unit also includes:
    -  32 GPI
    -  USB port for control and firmware updates
    -  Heavy duty metal box
    -  Metal Thread Locking DC Power Socket
    -  Power Supply, HDMI Cable and USB Cable
